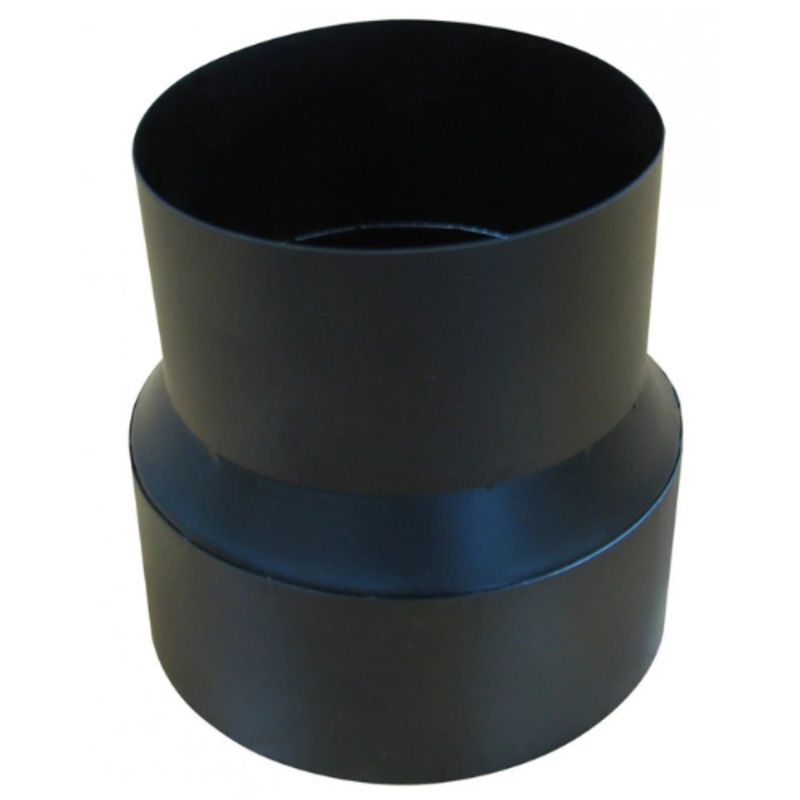

Charnwood heavy duty metal connector for stepping from 125mm to 150mm. This heavy duty metal connector can be used for stepping up or down in hose sizes. It can also be used for connecting a hose line to machinery with a different sized outlet.

It is recommended that 100mm diameter hose is always used from the extractor to the dust producing machine and then the reducing cone fitted.Using any length of hose of less than 100mm diameter will reduce the performance of the extractor and should therefore be kept to a minimum. A 100mm hose clamp should be used to fasten the hose the reducer.

Below shows the outside diameter (OD), and the inside diameter (ID), for each end of the connector.

From 125mm (OD) to 123mm (ID)

To 150mm (OD) to 148mm (ID).

Specification:
