Sale!

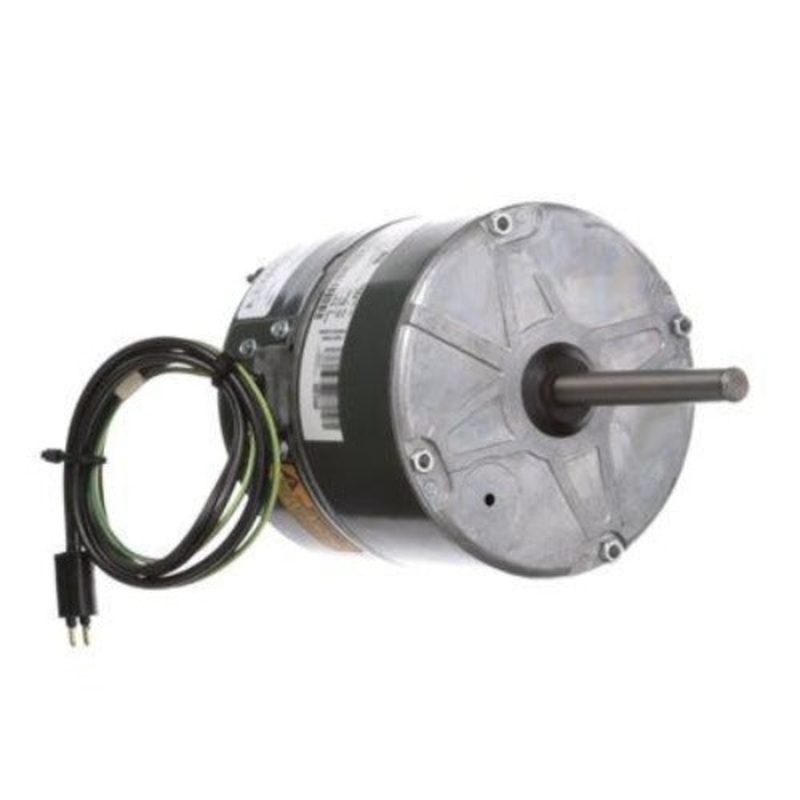

5R007, Genteq, ECM, 1/3 Hp, 1075 Rpm, 230 Volts, Fr:48,TEAO,1Ph, 2.6A,
$127.07
$423.55
5R007, Genteq, ECM Motors,1/3 HpOutput KW:0.25 kWFrequency:60 HzVoltage:208-230 VCurrent:3.5 ASpeed:1075 rpmService Factor:1Phase:1Duty:Continuous Air OverInsulation Class:BFrame:48Enclosure:Totally Enclosed Air OverThermal Protection:NoAmbient Temperature
5R007, Genteq, ECM Motors,
| 1/3 Hp | Output KW: | 0.25 kW | |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 3.5 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous Air Over | Insulation Class: | B |
| Frame: | 48 | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | No | Ambient Temperature: | 40 C |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Electronically CommutatedMotor | Poles: | 12 |
| Rotation: | Counterclockwise | Mounting: | Round |
| Motor Orientation: | Hor | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Overall Length: | 9.91 in |
| Frame Length: | 3.07 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 3.92 in | Thru-bolts Extension: |
0 in |
- ARKTIC 142 – Refrigeration Motor
- 5.6″ Diameter – 48 Frame
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation
- Ball Bearing
- 1/2″ Diameter Shaft with Flat
- 26.5 Lead Length with Molded Plug
- Belly Band
