Sale!

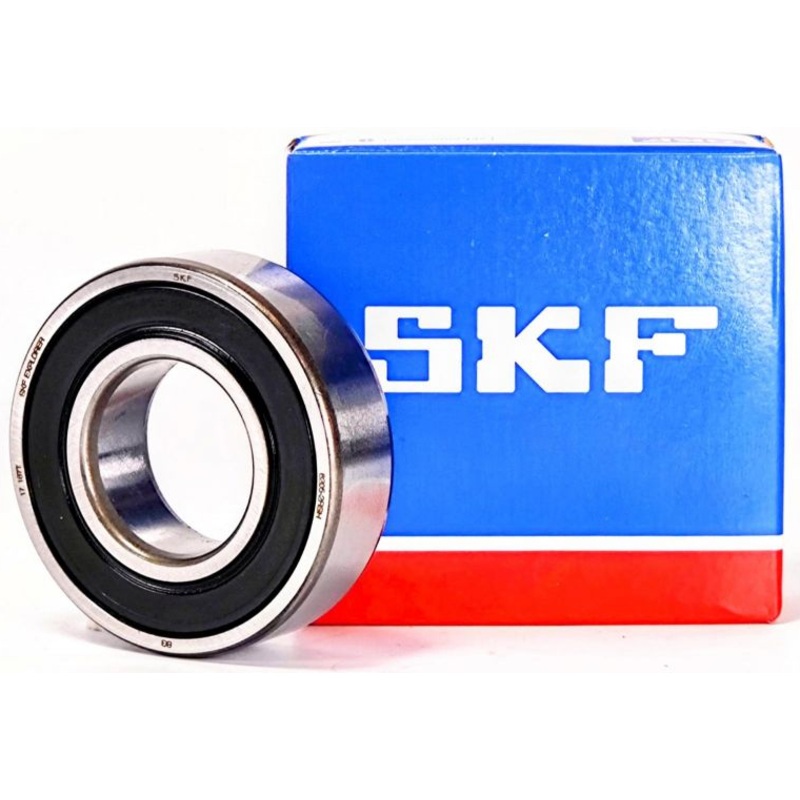

6316-2RSH-C3, Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
$124.66
$415.53
6316-2RSH-C3, Rubber Sealed Deep Groove Ball Bearing 80x170x39mmReplacement by NTNCategorySpecificationValueTypeBearing TypeDeep Groove Ball BearingBoreBore Type0Bore Diameter (d)3.1500 in (80.000 mm)DimensionsOutside Diameter (D)6.6930 in (170.000 mm)Widt
6316-2RSH-C3, Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
Replacement by NTN
| Category | Specification | Value |
| Type | Bearing Type | Deep Groove Ball Bearing |
| Bore | Bore Type | 0 |
| Bore Diameter (d) | 3.1500 in (80.000 mm) | |
| Dimensions | Outside Diameter (D) | 6.6930 in (170.000 mm) |
| Width (B) | 1.5350 in (39.000 mm) | |
| Outside Ring | Outside Ring Type | 0 |
| Material | Bearing Material | High Carbon Chrome Steel |
| Cage | Cage Type | Pressed |
| Cage Material | Pressed Steel | |
| Balls | Ball Material | Through Hardened Steel |
| Speed | Limiting Speed (Grease) | 2700 RPM |
| Sealing | Seal Type | Contact |
| Seal Material | Nitrile Rubber | |
| Precision | Precision Class | ISO Class 0 |
| Configuration | Number of Rows | One |
| Load Ratings | Factor | 13.3 |
| Radial Internal Clearance | 0 | |
| Static Load Rating | 19,447 lbf / 86,500 N / 86.50 kN | |
| Dynamic Load Rating | 30,576 lbf / 136,000 N / 136.00 kN | |
| Enclosure | Type | Full Contact Seal – Both Sides |
| Weight | Weight | 7.916 lb (3.590 kg) |
| Temperature | Operating Temperature Range | -40 to 250 F (-40 to 120 C) |
