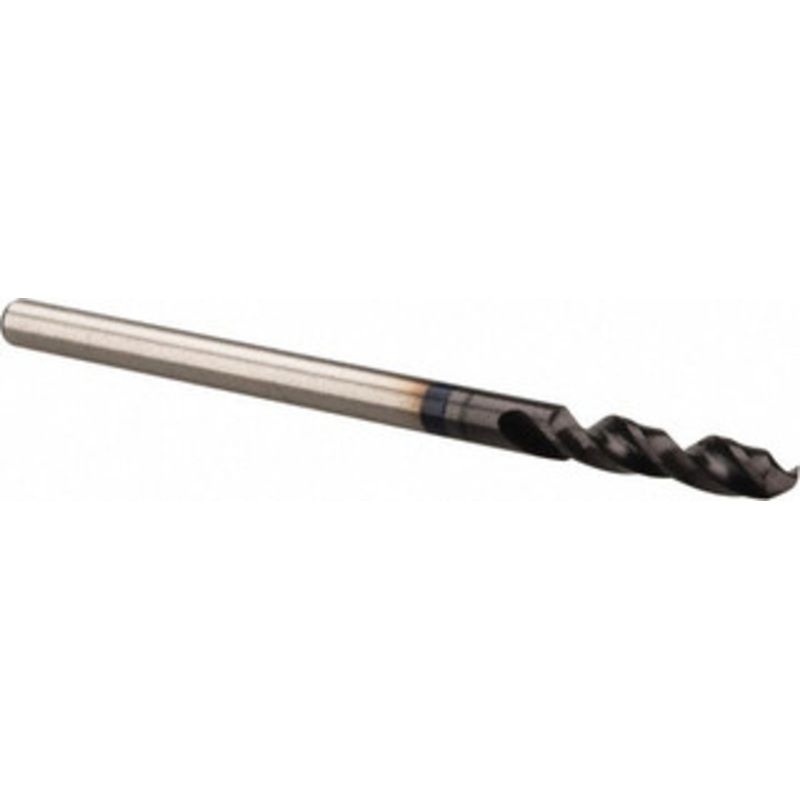

Accupro 3/32 120 Spiral Flute Cobalt Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 14mm Flute Length, 43mm OAL, Split Point, Straight Shank 1BS0238-AC – 05493192

Accupro 3/32 120 Spiral Flute Cobalt Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 14mm Flute Length, 43mm OAL, Split Point, Straight Shank 1BS0238-AC – 05493192

$2.67 $4.45
Review

Accupro 3/32" 120 Spiral Flute Cobalt Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 14mm Flute Length, 43mm OAL, Split Point, Straight ShankManufacturer Part #: 1BS0238-ACS/N: 05493192UNSPSC: 23241635UPC: 000054931923(Minimum Order Quantity=1, Pack

SKU: 5493192.0 Category:
Description Reviews (0)

Accupro 3/32″ 120 Spiral Flute Cobalt Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 14mm Flute Length, 43mm OAL, Split Point, Straight Shank

Manufacturer Part #: 1BS0238-AC

S/N: 05493192

UNSPSC: 23241635

UPC: 000054931923

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 3/32 Drill Bit Size (Decimal Inch) 0.0938 Tool Material Cobalt Cutting Direction Right Hand Coating/Finish TiAlN Number Of Flutes 2 Spiral Type Fast Flute Type Fast Spiral Drill Point Angle 120 Coolant Through No Shank Type Straight Point Type Facet Primary Workpiece Material Stainless Steel Shank Diameter (Decimal Inch) 0.0938 Overall Length (mm) 43.00 Overall Length (Decimal Inch) 1.6929 Web Thinning Web-Thinned Web Configuration Parallel Proprietary Coating/Finish TiAlN Flute Length (mm) 14.00 Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.0000 to 0.1000 Specification Number DIN 1897 Specification Designation DIN UNSPSC Code 23241635
