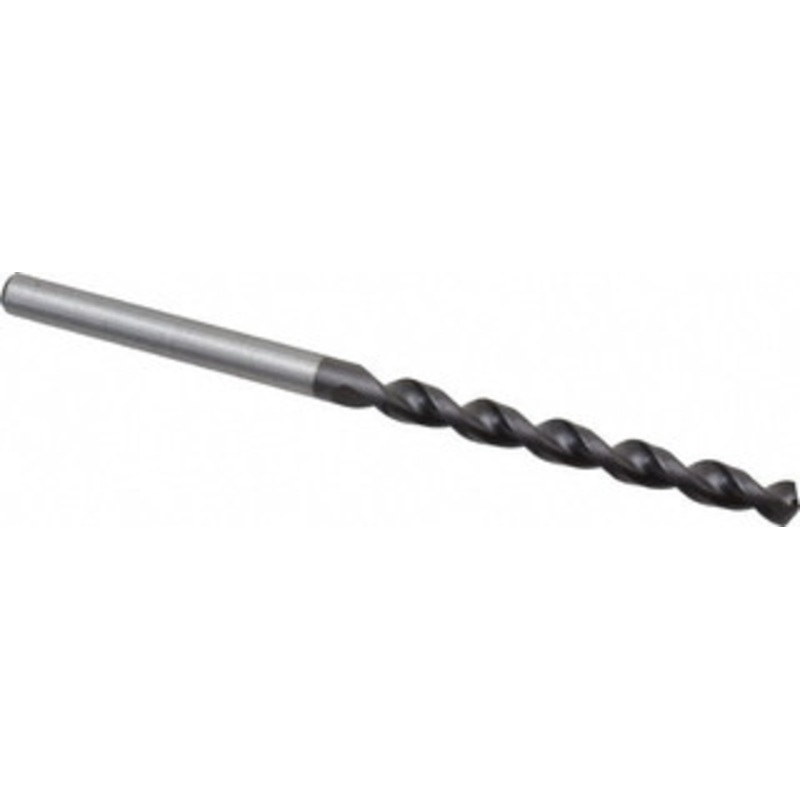

Accupro 5/32 130 Cobalt Jobber Drill TiAlN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16 OAL, Split Point 1640397A-AC – 05926423

$11.11 $18.52
Review

Accupro 5/32" 130 Cobalt Jobber Drill TiAlN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16" OAL, Split PointManufacturer Part #: 1640397A-ACS/N: 05926423UNSPSC: 23241634UPC: 701438006229(Minimum Order Quantity=1, Package Quantity=1)Specif



SKU: 5926423.0 Category:

Accupro 5/32″ 130 Cobalt Jobber Drill TiAlN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16″ OAL, Split Point

Manufacturer Part #: 1640397A-AC

S/N: 05926423

UNSPSC: 23241634

UPC: 701438006229

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 5/32 Drill Bit Size (Decimal Inch) 0.1562 Drill Bit Material Cobalt Drill Point Angle (Degrees) 130 Coating/Finish TIALN Flute Type Parabolic Cutting Direction Right Hand Point Type Split Specification Number DIN 338 Coolant Through No Number of Flutes 2 Flute Length (Inch) 1-11/16 Overall Length (Inch) 2-15/16in Shank Diameter (Inch) 5/32in Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.1500 – 0.2000 Material Grade M35 Specification Designation DIN UNSPSC Code 23241634
