Sale!

Accupro 5/32 140 Spiral Flute Solid Carbide Screw Machine Drill Bit AlTiN Finish, Right Hand Cut, 14.9mm Flute Length, 62mm OAL, Standard Point, Straight Shank, Through Coolant 77712974 – 77712974

$29.74 $59.47
Review

Accupro 5/32" 140 Spiral Flute Solid Carbide Screw Machine Drill Bit AlTiN Finish, Right Hand Cut, 14.9mm Flute Length, 62mm OAL, Standard Point, Straight Shank, Through CoolantManufacturer Part #: 77712974S/N: 77712974UNSPSC: 23241635(Minimum Order Quanti



SKU: 7.7712974E7 Category:

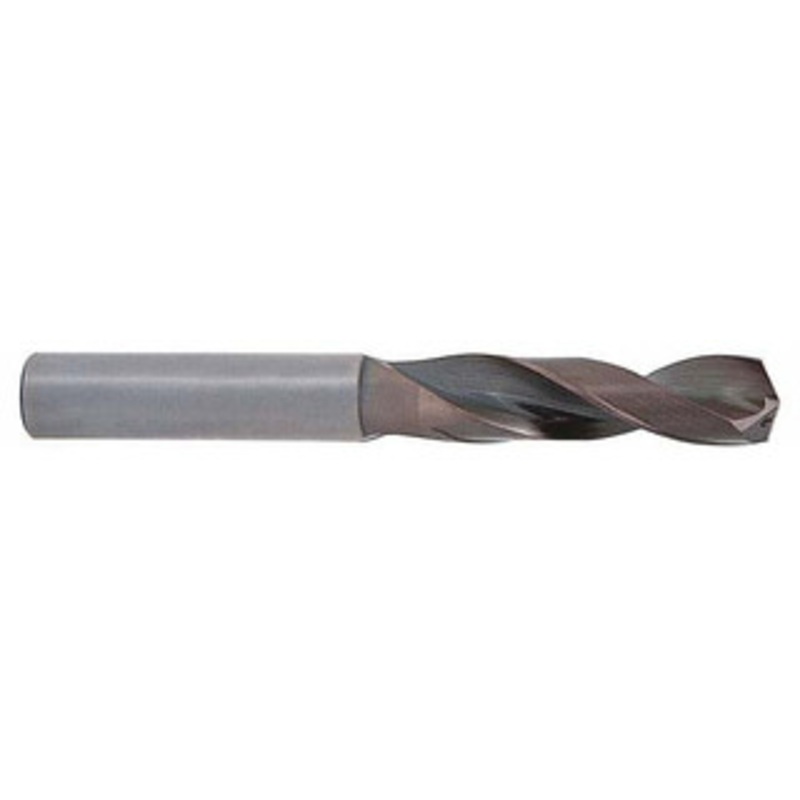

Accupro 5/32″ 140 Spiral Flute Solid Carbide Screw Machine Drill Bit AlTiN Finish, Right Hand Cut, 14.9mm Flute Length, 62mm OAL, Standard Point, Straight Shank, Through Coolant

Manufacturer Part #: 77712974

S/N: 77712974

UNSPSC: 23241635

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 5/32 Drill Bit Size (Decimal Inch) 0.1562 Tool Material Solid Carbide Cutting Direction Right Hand Coating/Finish AlTiN Number Of Flutes 2 Spiral Type Regular Flute Type Spiral Drill Point Angle 140 Coolant Through Yes Shank Type Straight-Cylindrical Point Type Standard Primary Workpiece Material Alloy Steel, Cast Iron, Stainless Steel Overall Length (mm) 62.00 Shank Diameter (mm) 4.00 Web Thinning Web-Thinned Web Configuration Parallel Maximum Drilling Depth (Decimal Inch) 0.4690 Shank Length (mm) 47.10 Flute By Diameter Ratio 3xD Drill Bit Diameter Tolerance +0.0000 to -0.0005 in Flute Length (mm) 14.90 Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.1500 to 0.2000 Material Grade Submicron
