Big Kaiser 0.0335, 118 Point, Solid Carbide Micro Drill Bit 0.984 OAL, 5mm Flute Length, 1.5mm Shank Diam, Series 50 699 50699-0.85 – 01197912

Big Kaiser 0.0335, 118 Point, Solid Carbide Micro Drill Bit 0.984 OAL, 5mm Flute Length, 1.5mm Shank Diam, Series 50 699 50699-0.85 – 01197912

$10.67 $17.78
Review

Big Kaiser 0.0335", 118 Point, Solid Carbide Micro Drill Bit 0.984" OAL, 5mm Flute Length, 1.5mm Shank Diam, Series 50 699Manufacturer Part #: 50699-0.85S/N: 01197912UNSPSC: 23241600(Minimum Order Quantity=10, Package Quantity=1)(Please order in multiples

SKU: 1197912.0 Category:
Description Reviews (0)

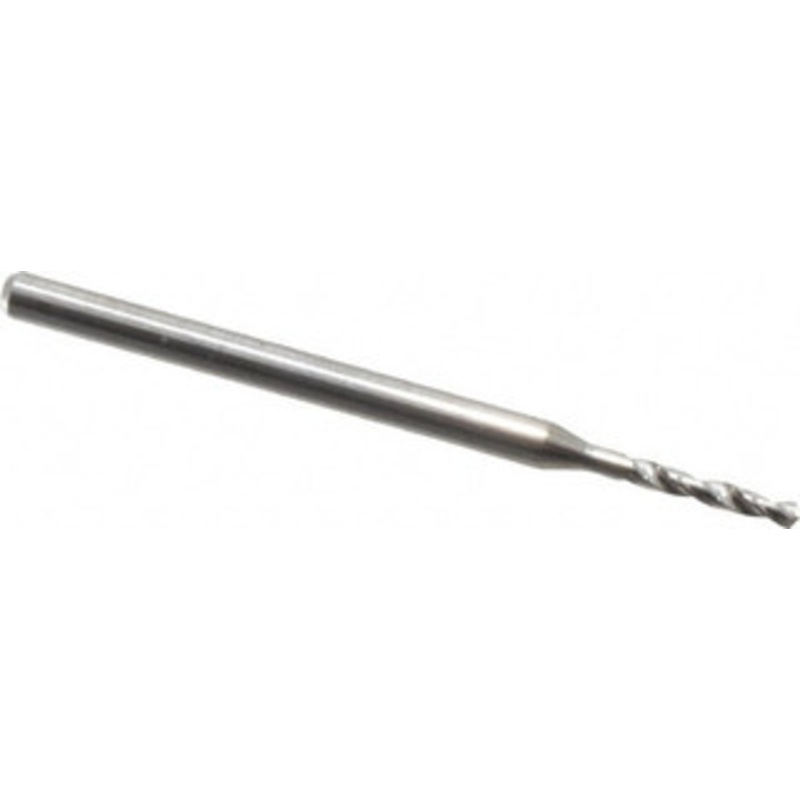

Big Kaiser 0.0335″, 118 Point, Solid Carbide Micro Drill Bit 0.984″ OAL, 5mm Flute Length, 1.5mm Shank Diam, Series 50 699

Manufacturer Part #: 50699-0.85

S/N: 01197912

UNSPSC: 23241600

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (Decimal Inch) 0.0335 Tool Material Solid Carbide Flute Length (mm) 5.00 Coating/Finish Bright/Uncoated Coolant Through No Drill Point Angle 118 Cutting Direction Right Hand Maximum Drilling Depth (mm) 5.00 Series 50 699 Overall Length (Decimal Inch) 0.9840in Flute Type Spiral Shank Type Straight-Cylindrical Point Type Four Facet Tool Application Blind Hole, Through Hole Drilling Web Thinning Web-Thinned Web Configuration Tapered Drill Bit Diameter Tolerance +0.000 to -0.004 mm Primary Workpiece Material Cast Iron, Steel Primary Workpiece Material Code K, P Secondary Workpiece Material Non-Ferrous Metal, Stainless Steel Secondary Workpiece Material Code M, N Standards DIN 1899A Shank Diameter (mm) 1.50mm Flute By Diameter Ratio 6xD Material Grade K20/30 Spiral Type Regular UNSPSC Code 23241600
