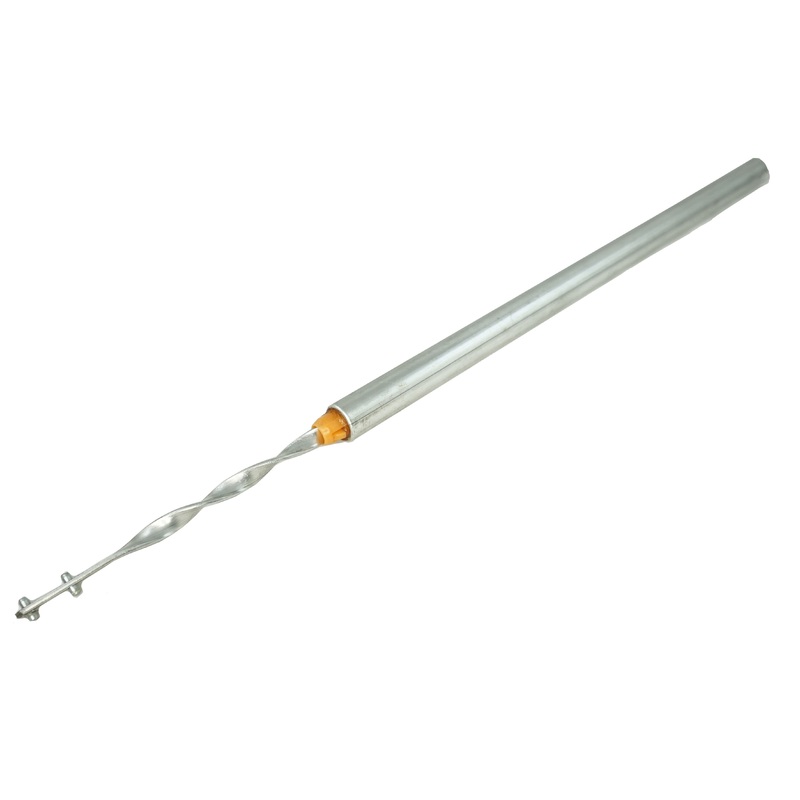

The 200 Series is a standard spiral window balance for tiltwindow applications. This balance is designed for residential or commercial window applications. These balances feature a 5/8″diameter tube and lengths ranging from 7″ to 51″ and weight capacities from 4lbs to 31lbs you’re sure to find thespiral window balance to fit your needs.

To Select the CorrectTilt Spiral Window Balance:

• First, measure the length of the metal tube. Measure the metaltube only, do not include the colored coupling or spiral rod. That is your balance length. Check out our guide onmeasuring spiral window balancesfor more info on how to measure your balances properly.
• Next, take a look at thecolor of the coupling on the tip of your balance. The color of the coupling indicates the weight capacity of the balance. Select the matching coupling color in the second dropdown menu. If you do not have a coupling or cannot determine the color, you will need to remove your sash and weigh it using a bathroom scale.
• These measurements are crucial to the performance of the balance.If your balance does not measure an exact length,or if you have an attachment on your spiral rod,contact us before you place your order.
• Does not include pivot locking shoes.

Additional Information:

• PLEASE NOTE THAT ANY BALANCES15 INCHES OR LONGER CANNOT BE SENT TO A P.O. BOXTHROUGH USPS (United States Postal Service)CONTACT US TO ORDER
• UPS (United Parcel Service) WILL NOT DELIVER ANY PACKAGES TO A P.O. BOX
• Balances are sold individually.
• The information is based on two balances per sash with no weatherstrip friction considered.
• AAMA Class 2 Verified Component.
• Weight capacities are listed per pair of balances in pounds.
• For optimal performance, we recommend replacing both balances at the same time.
• Select your options to see the final price.
• Don’t have your balance in hand? Check out our blog on determiningbalance length without having the balance.

Installation:

View our guide oninstalling tilt spiral window balances.

Requires use of Caldwell EZ Spiral Balance Tension Tool

To learn more about our Series200Spiral Window Balances watch the videos below:
