Sale!

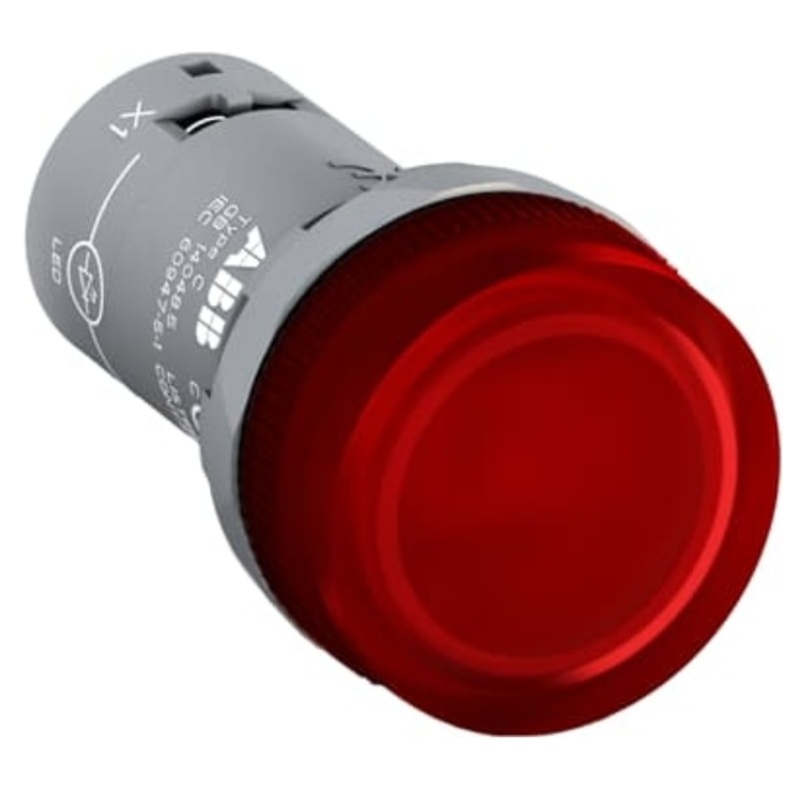

CL2-513R, Pilot Light, Red Lens, 110-130 V AC/DC, CL2 Series
$25.25
$42.08
ABB CL2-513R, CL2-513G, Pilot Light, Red Lens, 110-130 V AC/DC, CL2 Series PropertyValueAmbient Temp (Operation)-25 ... +70 CAmbient Temp (Storage)-40 ... +85 CColorRedActuator TypePilot light headIlluminationIlluminatedLamp Type110-130 V AC, integrated LE
ABB CL2-513R, CL2-513G, Pilot Light, Red Lens, 110-130 V AC/DC, CL2 Series
| Property | Value |
| Ambient Temp (Operation) | -25 … +70 C |
| Ambient Temp (Storage) | -40 … +85 C |
| Color | Red |
| Actuator Type | Pilot light head |
| Illumination | Illuminated |
| Lamp Type | 110-130 V AC, integrated LED |
| Enclosure Type (NEMA) | Type 1, 3R, 4, 4X, 12, 13 |
| Pollution Degree | 3 |
| Rated Frequency | 50 / 60 Hz (Supply Circuit) |
| Rated Voltage | 110 … 130 V AC (Supply Circuit) |
| Connecting Capacity | Flexible/Ferrule/Insulated: 1/2 x 0.752.5 mm Solid: 1/2 x 0.752.5 mm |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 Nm |
| Wire Stripping Length | 8 mm |
