Sale!

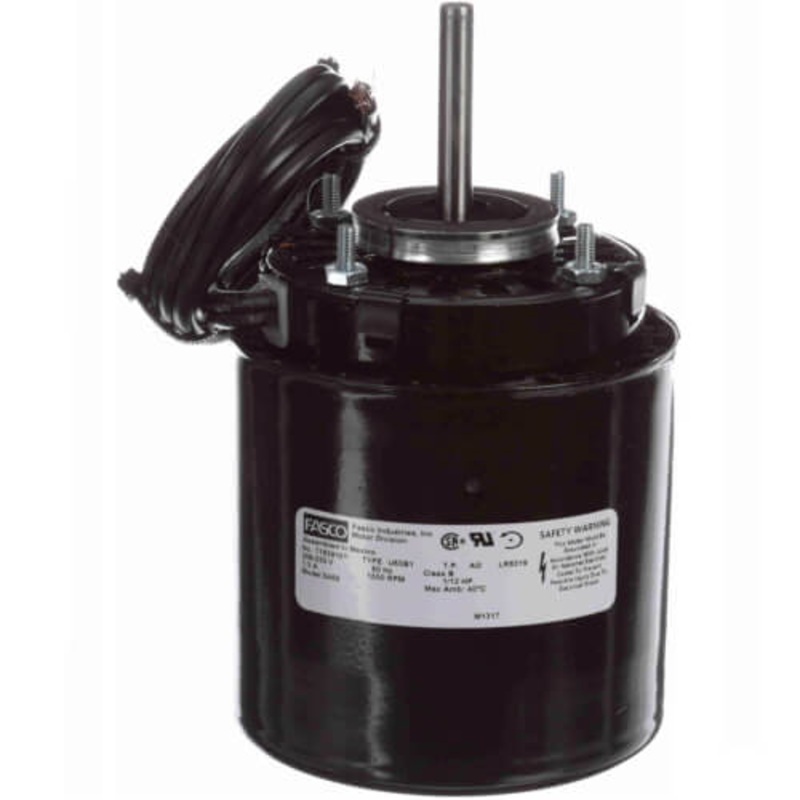

D469, Fasco, 1/12 Hp, 1550 RPM, 208-230V, 1.3A, CCWSE,Open,3.3” O.D,
$144.48
$288.95
D469 Fasco, ReplaceGE1232, GE 11, Rotom US-R90671,Nameplate SpecificationsOutput HP:1/12 HpOutput KW:0.06 kWFrequency:60 HzVoltage:208/230 VCurrent:1.30 ASpeed:1550 rpmService Factor:1Phase:1Duty:Air OverInsulation Class:BFrame:3.3Enclosure:Open Air OverTh
D469 Fasco, ReplaceGE1232, GE 11, Rotom US-R90671,
Nameplate Specifications
| Output HP: | 1/12 Hp | Output KW: | 0.06 kW |
| Frequency: | 60 Hz | Voltage: | 208/230 V |
| Current: | 1.30 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat & Groove | Overall Length: | 6.98 in |
| Frame Length: | 3.24 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 2.2 in |
- Refrigeration Fan Motor
- 3.3″ Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
- Class B Insulation, 40C Ambient
- Sleeve Bearing
- 5/16″ Diameter Shaft with Flat
- 30″ Leads
- Extended Studs Shaft End, Resilient Mounting Ring Shaft End and Opposite Shaft End
