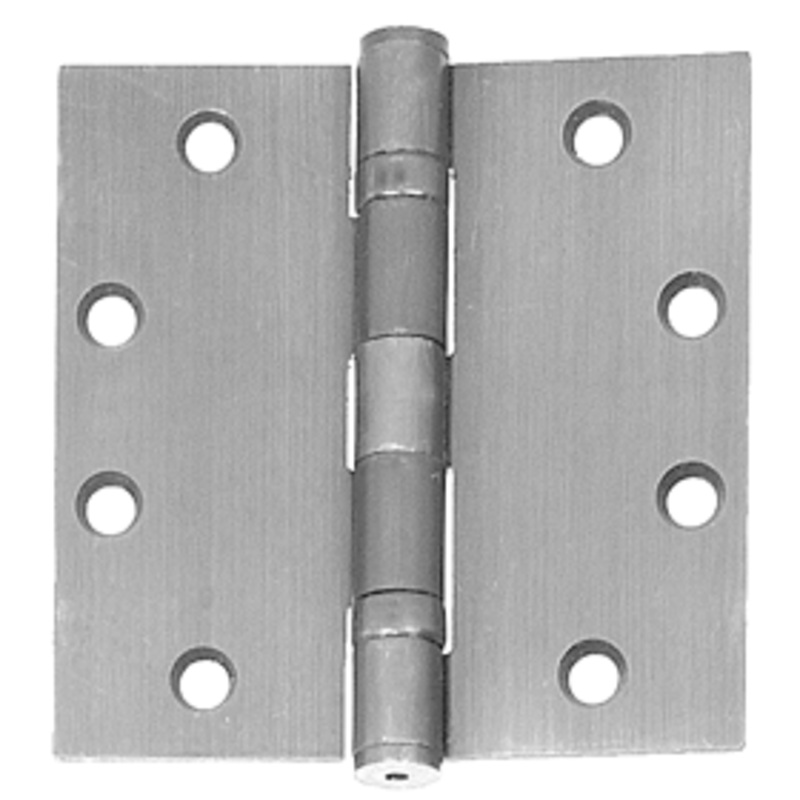

Standard Weight

• Ball bearing reduces friction to extend lifetime of hinge
• For medium weight doors of average frequency use
• More durable than standard hinges

Designations

ANSI:

Meets ANSI A 156.2 – Dimensions and tolerances conform to ANSI – A156.7

Specifications

• ANSI:Meets ANSI A 156.2 Dimensions and tolerances conform to ANSI A156.7
• Gauge of Metal:.129 for 4 x 4, .134 for 4.5 x 4.5, .145 for 5 x 4 1/2 sizes
• Base Material:Steel (ANSI A8112) or Stainless Steel (Grade 304 standard) (ANSI A5112) Marine Grade 316 US32D Stainless Steel also available
• Design & Templating:5 Knuckle Design & Templated hole locations for wood or metal doors & frames
• Fire Door Use:Approved for most types of fire doors up to 4 x 10, 8 x 10 pairs Refer to NFPA80
• Swaging:1/16 Swage standard which provides 1/16 of clearance between leaves
• Security NRP:NRP Non removable pin available upon request for most sizes
• Pin & Tip:Equipped with easily seated non-rising pin with button head & plug
• Radius Corner:1/4 and 5/8 Radius Corner available and in stock for 4 x 4 sizes only
• Bearings:Each hinge has 2 sets of maintenance free non detachable ball bearings
• Electrification:Concealed thru wire and monitoring options available, See electrified section
• Fasteners:Each box of 3 hinges contains full set of machine and wood screws
• Warranty:Limited Lifetime Warranty

Finishes

Choose from a variety of finishes to match any project you may have.

Bright/Polished Brass (US3/605)

Brushed/Satin Brass (US4/606)

Black (US19/631)

Oil Rubbed Bronze (US10B/613)

Brushed/Satin Nickel (US15/619)

Bright/Polished Chrome (US26/625 PVD)

Prime Painted (USP/600)

Brushed/Satin Chrome (US26D/626)

Brushed/Satin Stainless Steel (US32D/630)

Sell Sheets

• Specification BB5

Templates

• BB5 Standard Weight Hinge 4 x 4 Template
• BB5 Heavy Weight Hinge 5 x 4.5 Template
• BB5 Heavy Weight Hinge 4.5 x 4.5 Template
