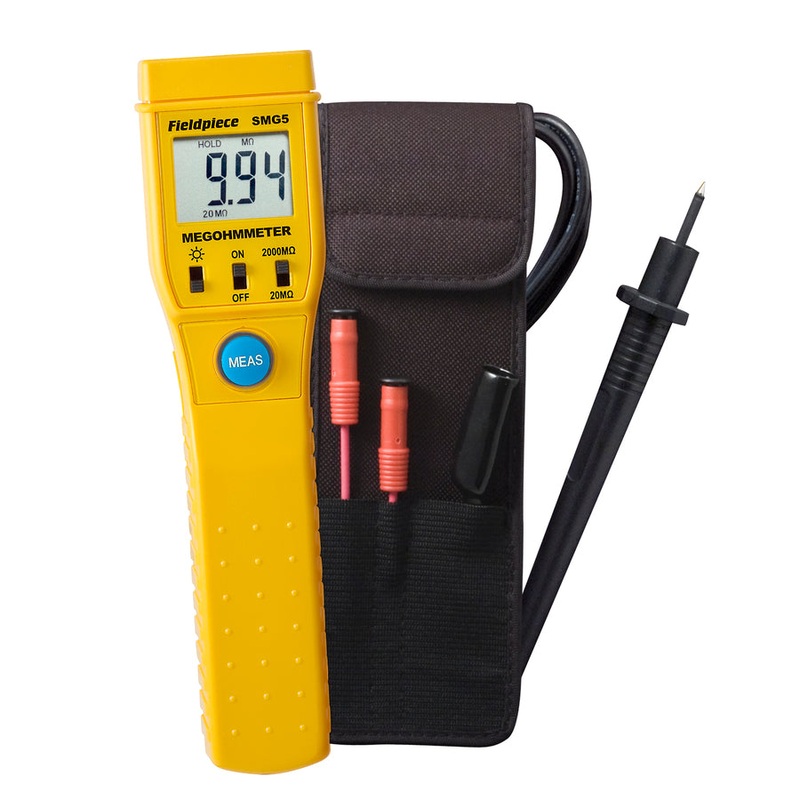

FIELDPIECE Megohm Meter with Leads, Clips & Case

SMG5

Being a compact standalone meter designed for checking HVACR compressor motor insulation, the Fieldpiece SMG5 provides a 1000 V voltage source, monitors current, and displays the resistance between the test points.

Maximum current output is <1mA and can be used to determine the condition of insulation from winding to ground in a motor, compressor, or transformer.

To test resistance, a DMM supplies low voltage (<1 V) to the test points and is capable of delivering only a few milliamps. It's not a high enough voltage to detect high resistance problems that might indicate moisture and other contaminants and it's not enough current to measure lower values of resistance.

Features and capabilities:

• Predict compressor failure

• 1000 VDC stresses insulation to measure up to 2000 Mohms

• Backlit LCD display

• Auto-off to extend battery life

• Case, alligator clip, leads with removable tips

Specifications:

• Display: 3 1/2 digit liquid crystal display (LCD) with maximum reading of 1999

• Overrange: (OL) or (-OL) is displayed

• Low battery indication: The Battery Icon is displayed when the battery voltage drops below the operating level

• Measurement rate: 2.5 times per second, nominal

• Operating Environment: 0 to 40 C at < 70% relative humidity

• Storage Temperature: -20 to 60 C, 0 to 80% RH with battery removed from meter

• Auto power off: approx 15 seconds

• Standby consume current: <10A

• Battery: 4 1.5 V (AAA size) UM-4 R03

• Battery Life: 4 hours (continuity) typical with alkaline battery (@20 range test 10 resistor)

Warranty:

• 1 Year from Date of Purchase (excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Cases, etc)

What’s included:

• The SMG5 Megohm Meter

• 2 Probe Tips

• 1 Ground Lead with Detachable Tip

• 1 Alligator Probe Tip

• 4 AAA Batteries (installed)

• Operators Manual

• Carrying Case
