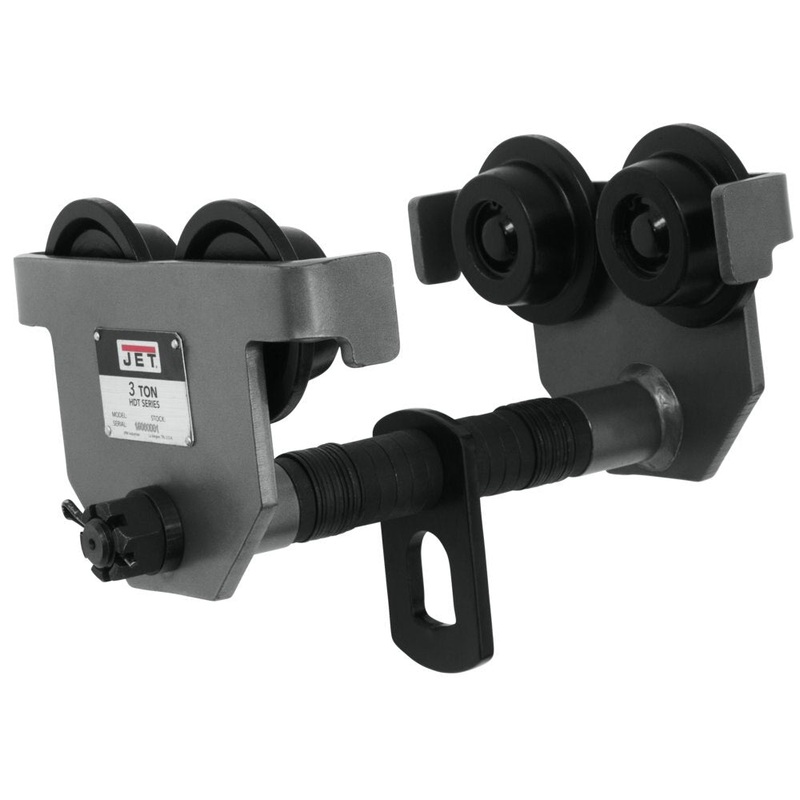

Jet JT9-262030 3-HDT, 3-Ton Manual Trolley
$147.16
$490.52
Jet 262030 Description JET HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET Manual Trolley conforms to
Jet 262030 Description
JET HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards
Jet 262030 Features
- Durability
- Welded all-steel frame and powder coat finish provide maximum durability and protection
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
- Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
- Standards
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Certification- Load tested to 125% of capacity with certificate
Jet 262030 Specifications
| Minimum Beam Flange Width (In.) | 4 – 8 |
| Minimum Beam Heighth (In.) | 8 |
| Load Capacity (Tons) | 3 |
| Capacity (Lbs.) | 6,600 |
| Minimum Beam Curve Radius (In.) | 51 |
