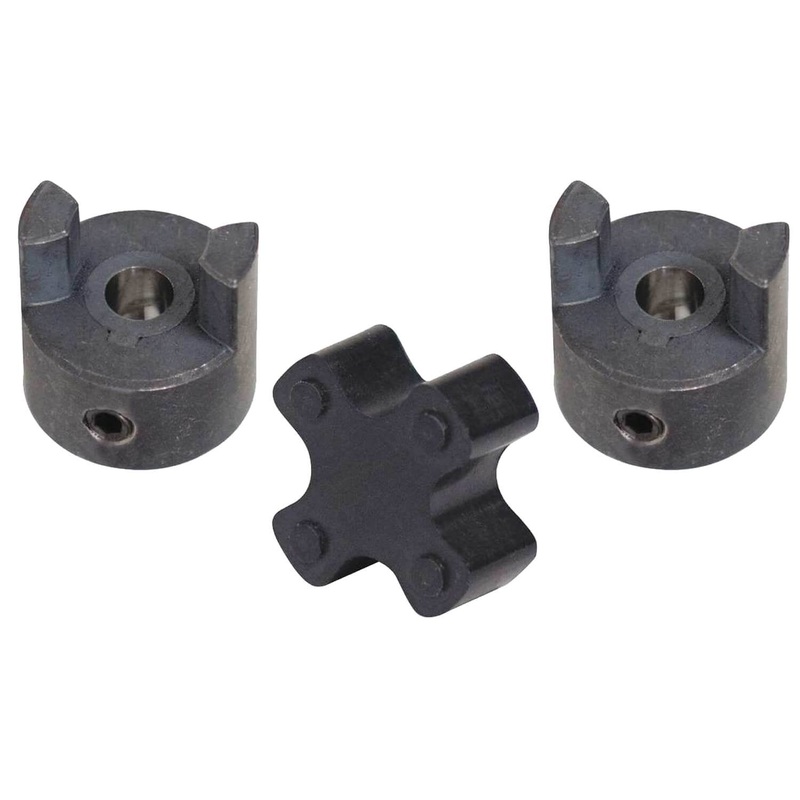

L050, COUPLING TB WOOD, MASKA, DODGE, LOVEJOY

• BORE 5/8”

Technical Specs

• Item – Jaw Coupling SpidersJaw Coupling Insert
• Size – Jaw CouplingsL050
• Material – SpidersUrethane
• Rated Torque39 in.-lb.
• Max. RPM18,000
• HP Rating @ 100 RPM0.06
• Temp. Range-30 Degrees to 160 Degrees F
• Max. Bore (In.)0.625
• HP Rating @ 300 RPM0.2
• HP Rating @ 1200 RPM0.8
• HP Rating @ 1800 RPM1.1
• HP Rating @ 3600 RPM2.3
• ColorBlue
• Length (In.)1.06
• Width (In.)1.06
• Height (In.)0.42
• Accommodates1
• Degree Angular and 0.015″ of Parallel Misalignment
