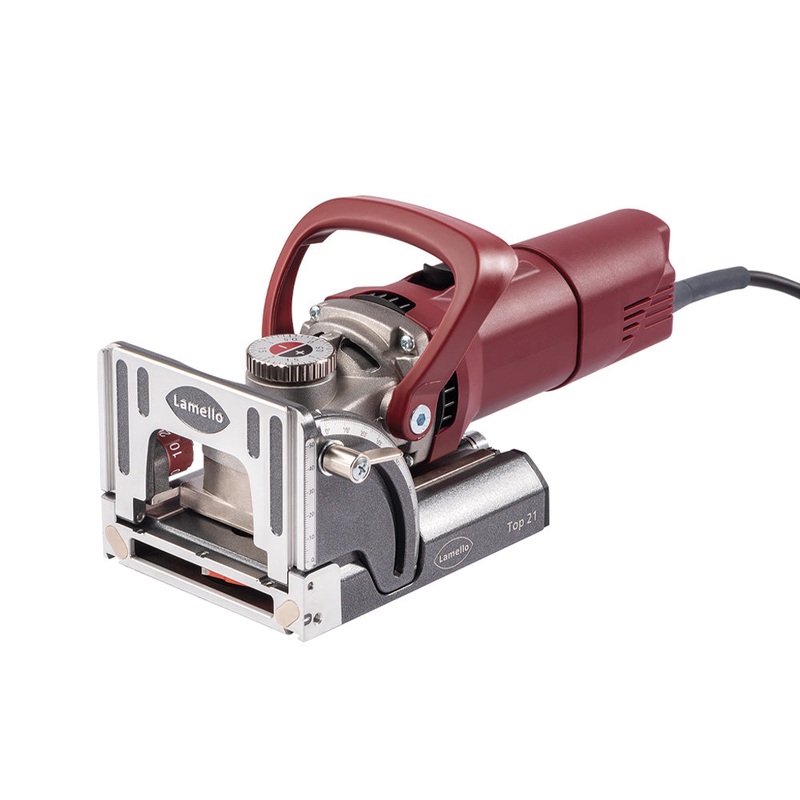

The Top 21 is the premium biscuit joiner created by Hermann Steiner, the inventor of the Lamello System. It features a height adjustable blade for cutting the 4 mm groove needed for biscuit joining. The unique height adjustment of the cutter allows you to set the cutting position in 0.1 mm intervals up to 4 mm. The Top 21 also has the ability to do 0 to 135 miters with the unique stop square and swiveling stop.

Unlike any other biscuit joiner on the market, the Top21 has a unique cutter height adjustment. It features a rotary knob, which can be used to adjust the cutter position up or down by 2 mm in steps of 0.1 mm. This function makes it possible to cut a central groove in a 19 mm thick panel (9.5 mm on both sides) instead of positioning it off-center (8 mm or 11 mm).

Don’t forget yourbiscuits/connectorsand cutters!

[TABS]

Features

• Unique rotating height adjustment to set the cutting position in 0.1 mm intervals
• Powerful, electronically controlled 1,050 W motor with soft start, constant speed, restart and overload protection
• Base plate generation with improved visibility of the angle scale and height adjustment as well as application surfaces left and right for efficient positioning on the work piece
• Precision-machined guide and application surfaces for perfect fit of work pieces
• Multifunctional stop square for vertical stability as well as perfect miters due to the application on the outer surface for 22.5 and 45 angles

Specs

Power: 1,050 W
Voltage: 120 V
Speed: 9,000 RPM
Cutter: Carbide-tipped cutter with groove, 100 x 4 x 22 mm
Teeth: 6, with scoring teeth
Max. cutting depth: 20 mm
Weight: 7.7 lbs.

Includes

• Top 21
• Groovecutter
• Suction stub 23 mm
• Suction stub 36 mm
• Dust bag
• Stop square
• Spacer 4 mm
• Tool set

Video

[/TABS]
