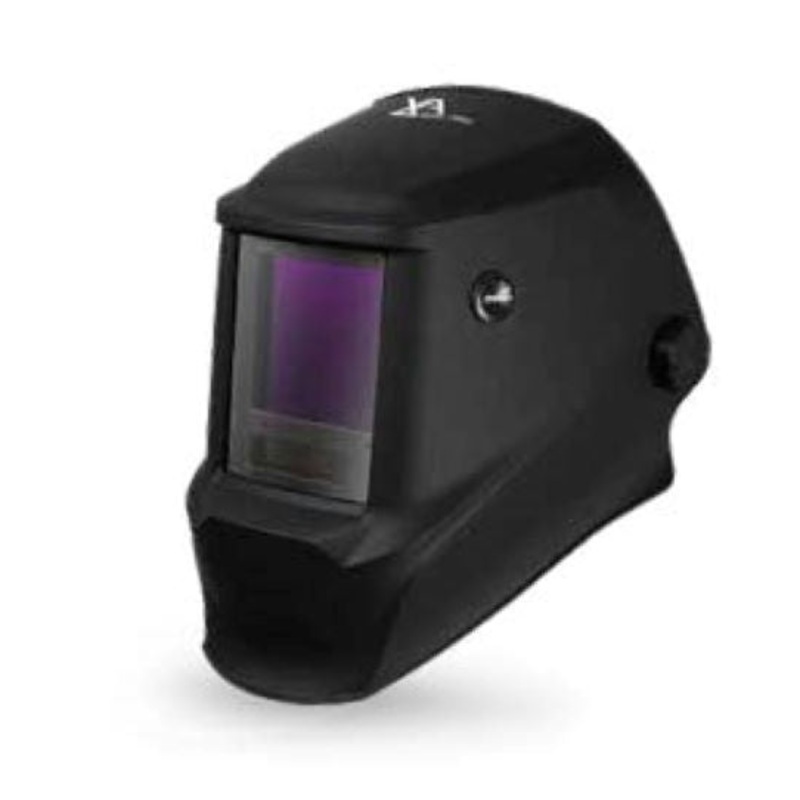

Keep your eyes and face protected during every weld with our AS8000D welding helmets. The 1/1/1/1 optical classification combined with the large 10083.4mm viewing lens means you get superior visibility in every situation. Youll also be able to save your favourite shade settings with the memory states, so your setup is instant.

HELMET SPECIFICATIONS
FILTER DIMENSIONS
114x133x9.5mm

VIEW SIZE
100×83.4mm

ARC SENSORS
4

CLASSIFICATION
1/1/1/1

LIGHT STATE
4

DARK STATE
5-9 / 9-13

UV/IR PROTECTION
DIN15

TIME FROM LIGHT TO DARK
0.04ms

TIME FROM DARK TO LIGHT
0.1-0.9s

SENSITIVITY DELAY
Adjustable (1-5 for low-high)

POWER SUPPLY
Solar Cells & CR2450 Replaceable Battery

WARRANTY
3 Years

OPERATING TEMPERATURE
-10C to 65C

STORAGE TEMPERATURE
-20C to 85C

SHADE CONTROL
Yes

GRIND MODE
Yes (External)

STANDARDS
AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)

REPLACABLE PARTS
OUTER LENS
XA-FCL133-114

INNER LENS
XA-ICL106-90

HARNESS
XA-AS-4-HB

SWEAT BAND
XA-AS-4-SWB

HARNESS BACK PAD
XA-AS-4-BP

FILTER
XA-5122DG

MAGNIFICATION LENS
MWL4215 – 1.5x Magnification Lens, MWL4220 – 2.0x Magnification Lens, MWL4225 – 2.5x Magnification Lens
