General Features

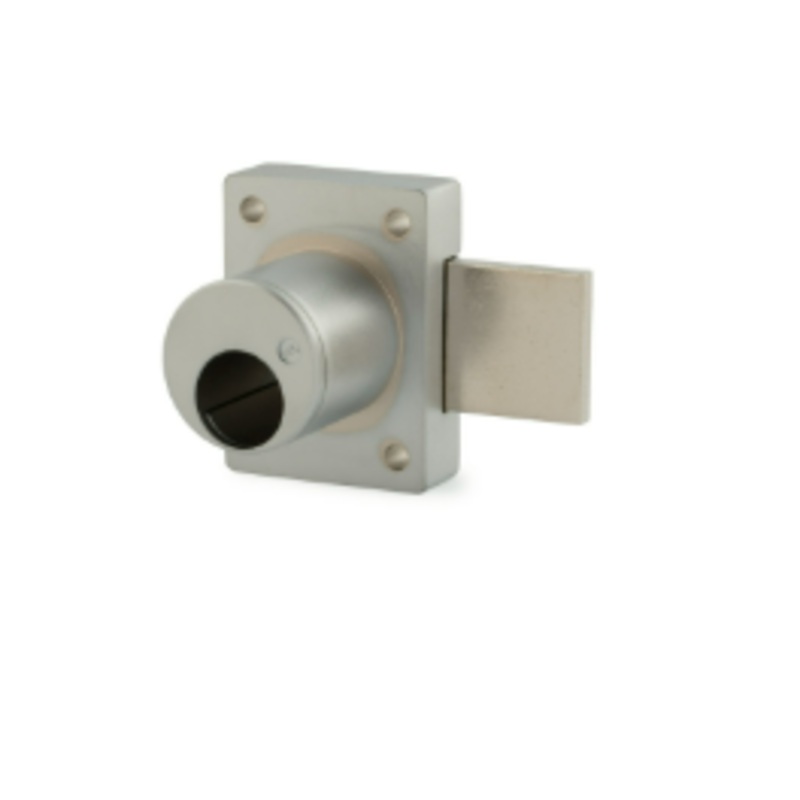

• Cabinet lock – deadbolt door lock
• Easily rekeyable via cylinder release mechanism
• Will accept other manufacturers’ Schlage-compatible deadbolt cylinders
• (Grade 1)ANSI/BHMA No. E07121
• 700LCA barrel length: 1-1/8″
• 700LCM barrel length: 1-3/8″
• Barrel diameter: 1-1/8″

• Bolt projection: 15/16″
• 700LCA: 26D, US3 or 10B finish
• 700LCM: 26D or US3 finish
• Packed 10 per box
• US Patent Nos: 4,899,563; 4,920,774
• WARNING (California Proposition 65)

Available Separately

• Plastic spacers10-348, 10-349, 10-350
• Angle strikes12-1, 12-2, 12-3
• Bar strikes56-1, 10-054, 10-055, 10-057, 10-058
• Slotted strikes10-052, 12-5
• Frameless drawer strike12-4
• Trim ringTR78
• Through-bolt trim plate 1/8″ thicknessETS1-125
• Through-bolt trim plate 1/4″ thicknessETS1-250
• Through-bolt trim pullETS1-PL
• Through-bolt trim spacer templateETST1
• Conversion kit for KABA-Peaks cylinders78-KABA-CONV

Includes

• 2 ea. plastic spacers (included with 1-1/8″ barrel length locks only)10-350
• 1 ea. 1/4″ plastic bar strike (included with 1-1/8″ and 1-3/8″ barrel length locks)10 054
• 1 ea. 1/2″ plastic bar strike (included with 1-1/8″ barrel length locks only)10-055

Keying

• N/A – this lock is sold less cylinders
• See our Schlage C keyway compatible cylinders78-201 Series
• Will accept other manufacturers’ Schlage-compatible deadbolt or key-in-knob cylinders
• Accepts Assa cylinder #6561:www.assalock.com
• Accepts Medeco cylinders: #20-009S4-ORIGINAL, #20-008S4-ORIGINAL, #20W009S4-BIAXIAL, #20W008S4-BIAXIAL, #20K009S4-KEYMARK, #20W200S1-KEY-RETAINAING ONLY:www.medeco.com

Testing
(E07121)ANSI/BHMA A156.11 Grade 1
Documents
Olympus Catalog PageArchitectural SpecificationsProduct Data SheetIlco 1599 Replacement Cylinders Reference SheetRekeying InstructionsLock Installation InstructionsCylinder Installation Instructions (Standard Function)Cylinder Installation Instructions (Key-Retaining Function)
Dimension Illustrations
FrontSide (1-1/8″)Side (1-3/8″)
