General Features

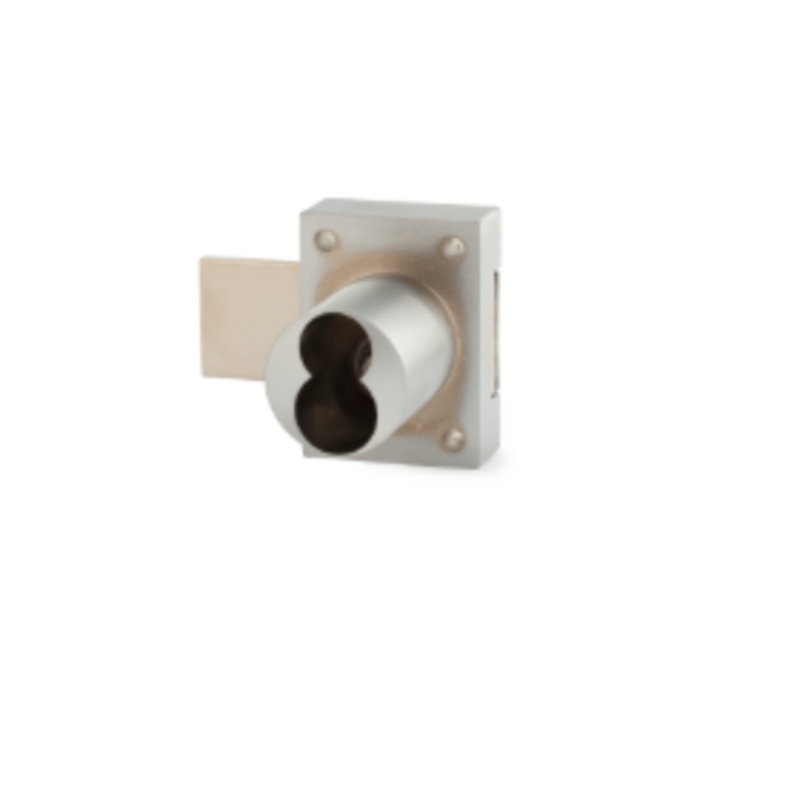

• Cabinet lock – deadbolt door lock
• Accepts Schlage standard or Primus/Everest large format (full size) interchangeable core cylinders
• Standard function: locks are non-handed with key removable in the locked and unlocked position
• Optional key-retaining* function: for part-numbers and handing seekey retaining chart
• (E07121)ANSI/BHMA Grade 1
• Barrel diameter: 1-1/8″

• Barrel length 1-7/16″
• 26D, US3 or 10B finish(see finish chart)
• Packed 10 per box
• *Key-retaining = key removable in the locked position only
• WARNING (California Proposition 65)

Available Separately

• Plastic spacers10-348, 10-349, 10-350
• Angle strikes12-1, 12-2, 12-3
• Bar strikes56-1, 10-054, 10-055, 10-057, 10-058
• Slotted strikes10-052, 12-5
• Frameless drawer strike12-4
• Trim ringTR78
• Through-bolt trim plate 1/8″ thicknessETS1-125
• Through-bolt trim plate 1/4″ thicknessETS1-250
• Through-bolt trim pullETS1-PL
• Through-bolt trim spacer templateETST1

Documents
Olympus Catalog PageArchitectural SpecificationsProduct Data SheetInstallation InstructionsKey-Retaining ChartTesting(E07121)ANSI/BHMA A156.11 Grade 1
Cores for Locks

• N/A – this lock is sold less cylinder
• Will accept Schlage standard or Primus/Everest large format interchangeable core cylinders.
• For more information on Schlage IC core cylinders visit.www.schlage.com

Includes

• 3 ea. plastic spacers10-350
• 1 ea. 1/4″ plastic bar strike10-054
• 1 ea. 1/2″ plastic bar strike10-055
• 1 ea. plastic actuator to functionally test lock without core7788-PA-D

Dimension Illustrations
FrontSide
