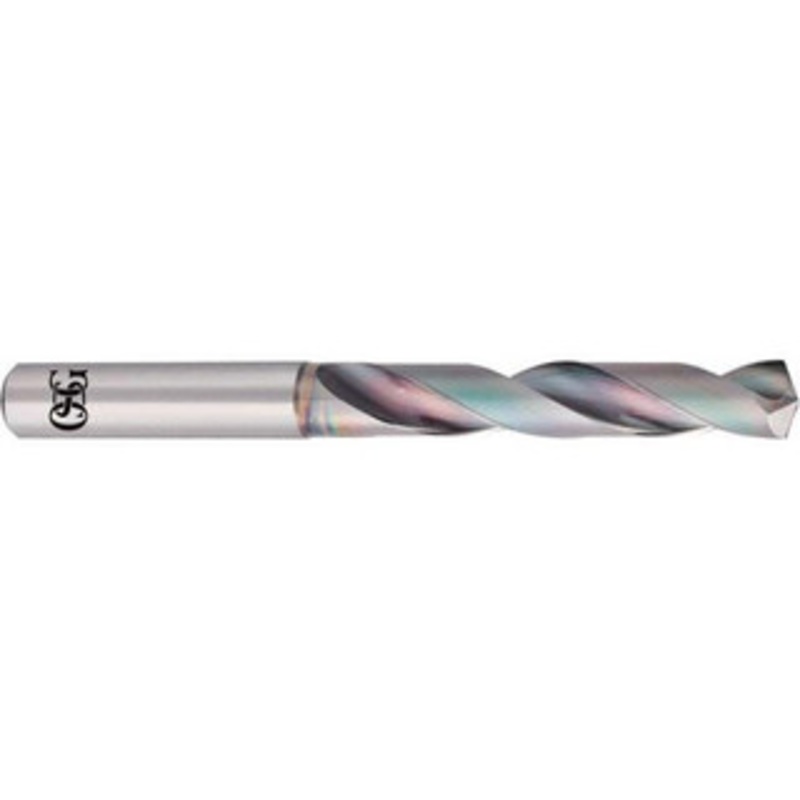

OSG 12.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL 8673230 – 48806368

OSG 12.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL 8673230 – 48806368

$143.39 $286.77
Review

OSG 12.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OALManufacturer Part #: 8673230S/N: 48806368UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)31/64D

SKU: 4.8806368E7 Category:
Description Reviews (0)

OSG 12.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL

Manufacturer Part #: 8673230

S/N: 48806368

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 31/64 Drill Bit Size (mm) 12.30 Drill Bit Size (Decimal Inch) 0.4843 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating EgiAs Primary Workpiece Material Code P, K, H Overall Length (mm) 124.00 Spiral Type Regular Flute Length (mm) 77.00 Series 6310 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 14.00 Drill Bit Diameter Tolerance +0 to -0.027 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.4000 – 0.5000 Drill Bit Size Range (mm) 10.00 – 12.50 UNSPSC Code 23241634
