OSG 13/64 140 Solid Carbide Jobber Drill WD1 Finish, 82mm OAL HP255-2031 – 46810024

OSG 13/64 140 Solid Carbide Jobber Drill WD1 Finish, 82mm OAL HP255-2031 – 46810024

$43.85 $87.70
Review

OSG 13/64" 140 Solid Carbide Jobber Drill WD1 Finish, 82mm OALManufacturer Part #: HP255-2031S/N: 46810024UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)13/64Drill Bit Size (mm)5.16Drill Bit Size (Decimal

SKU: 4.6810024E7 Category:
Description Reviews (0)

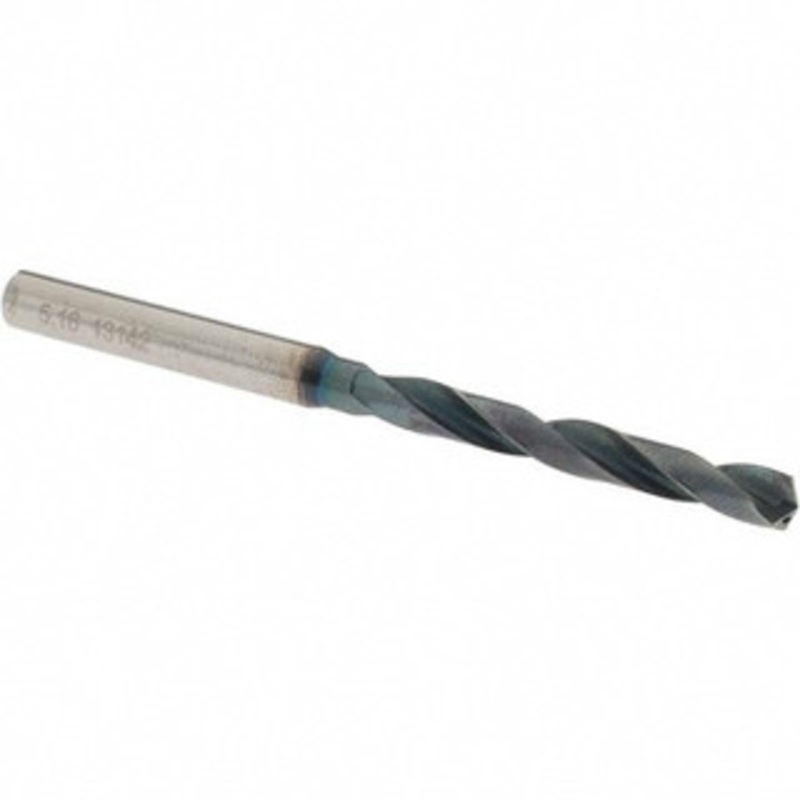

OSG 13/64″ 140 Solid Carbide Jobber Drill WD1 Finish, 82mm OAL

Manufacturer Part #: HP255-2031

S/N: 46810024

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 13/64 Drill Bit Size (mm) 5.16 Drill Bit Size (Decimal Inch) 0.2031 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating WD1 Primary Workpiece Material Code P, K Overall Length (mm) 82.00 Spiral Type Regular Flute Length (mm) 44.00 Series HP255 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 6.00 Drill Bit Diameter Tolerance +0.004 to +0.016 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.2000 – 0.2500 UNSPSC Code 23241634
