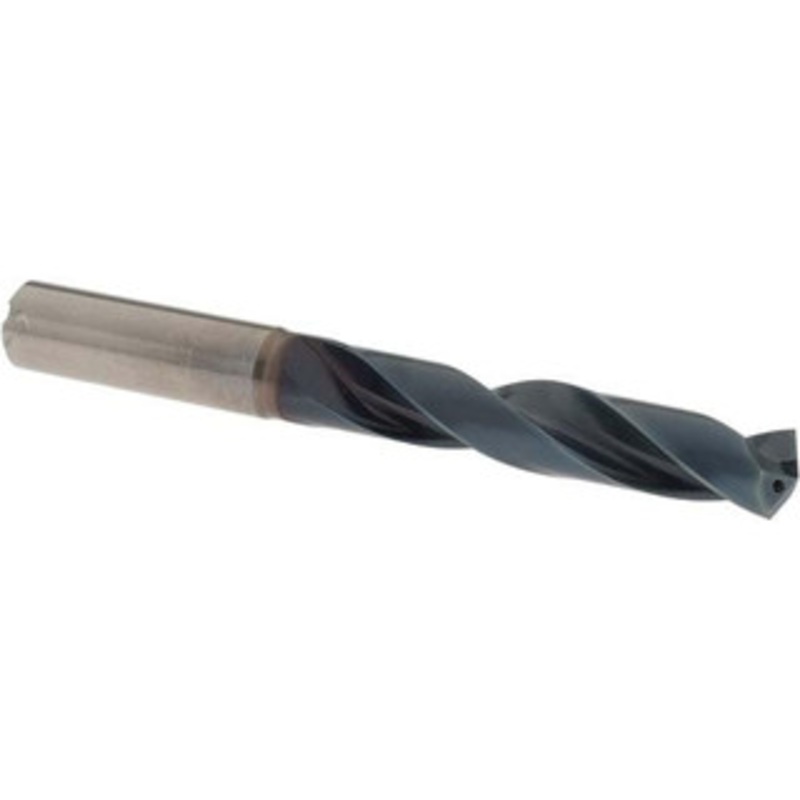

OSG 17/32 140 Solid Carbide Jobber Drill WD1 Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL HP255-5311 – 48807812

OSG 17/32 140 Solid Carbide Jobber Drill WD1 Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL HP255-5311 – 48807812

$130.27 $260.53
Review

OSG 17/32" 140 Solid Carbide Jobber Drill WD1 Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OALManufacturer Part #: HP255-5311S/N: 48807812UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)17/32

SKU: 4.8807812E7 Category:
Description Reviews (0)

OSG 17/32″ 140 Solid Carbide Jobber Drill WD1 Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL

Manufacturer Part #: HP255-5311

S/N: 48807812

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 17/32 Drill Bit Size (mm) 13.50 Drill Bit Size (Decimal Inch) 0.5311 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating WD1 Primary Workpiece Material Code P, K Overall Length (mm) 124.00 Spiral Type Regular Flute Length (mm) 77.00 Series HP255 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 14.00 Drill Bit Diameter Tolerance +0.007 to +0.025 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.5000 – 0.6500 UNSPSC Code 23241634
