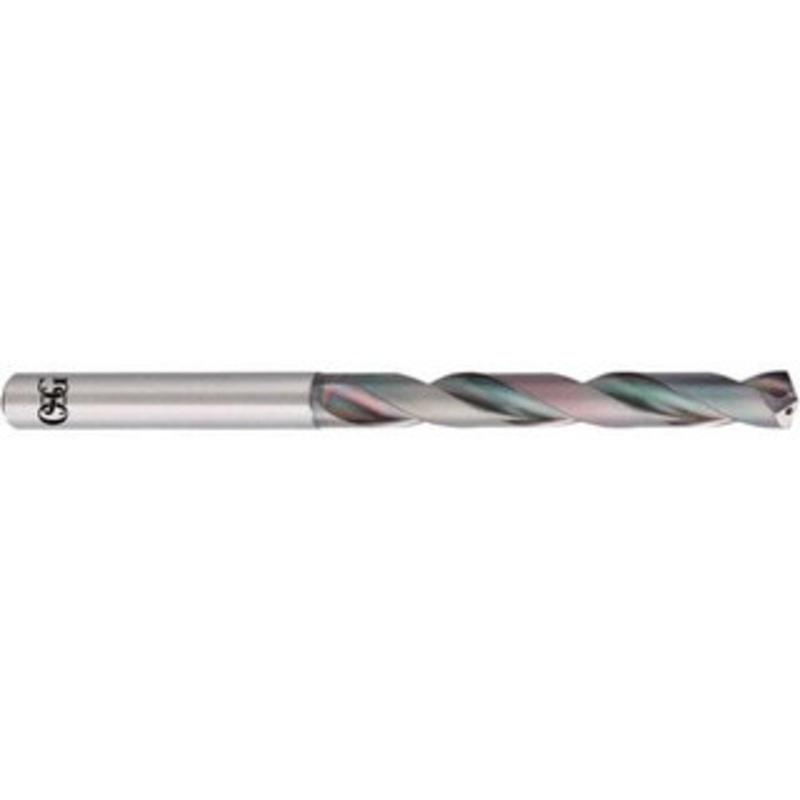

OSG 17/64 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OAL 651026411 – 48803266

OSG 17/64 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OAL 651026411 – 48803266

$94.33 $188.65
Review

OSG 17/64" 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OALManufacturer Part #: 651026411S/N: 48803266UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)17/6

SKU: 4.8803266E7 Category:
Description Reviews (0)

OSG 17/64″ 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OAL

Manufacturer Part #: 651026411

S/N: 48803266

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 17/64 Drill Bit Size (mm) 6.75 Drill Bit Size (Decimal Inch) 0.2656 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Coating/Finish EgiAs Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron, Titanium, Titanium Alloy Coolant Through Yes Number of Flutes 2 Primary Workpiece Material Code P, K, S, H Overall Length (mm) 109.00 Spiral Type Regular Flute Length (mm) 55.00 Series 6510 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (Inch) 5/16 Drill Bit Diameter Tolerance +0 to -0.022 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000 UNSPSC Code 23241634
