Sale!

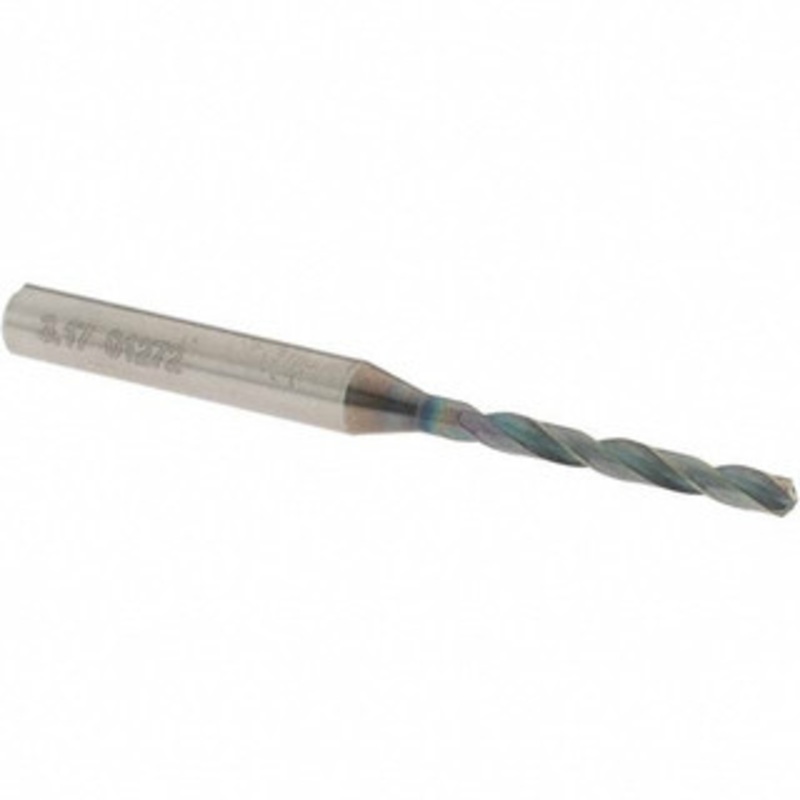

OSG 3.17mm 140 Solid Carbide Jobber Drill WD1 Finish, 66mm OAL HP255-1248 – 46811717

OSG 3.17mm 140 Solid Carbide Jobber Drill WD1 Finish, 66mm OAL HP255-1248 – 46811717

$38.76 $77.52
Review

OSG 3.17mm 140 Solid Carbide Jobber Drill WD1 Finish, 66mm OALManufacturer Part #: HP255-1248S/N: 46811717UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)1/8Drill Bit Size (mm)3.17Drill Bit Size (Decimal In

SKU: 4.6811717E7 Category:
Description Reviews (0)

OSG 3.17mm 140 Solid Carbide Jobber Drill WD1 Finish, 66mm OAL

Manufacturer Part #: HP255-1248

S/N: 46811717

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 1/8 Drill Bit Size (mm) 3.17 Drill Bit Size (Decimal Inch) 0.1248 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating WD1 Primary Workpiece Material Code P, K Overall Length (mm) 66.00 Spiral Type Regular Flute Length (mm) 28.00 Series HP255 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 6.00 Drill Bit Diameter Tolerance +0.004 to +0.016 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.1000 – 0.1500 Drill Bit Size Range (mm) 3.00 – 4.00 UNSPSC Code 23241634
