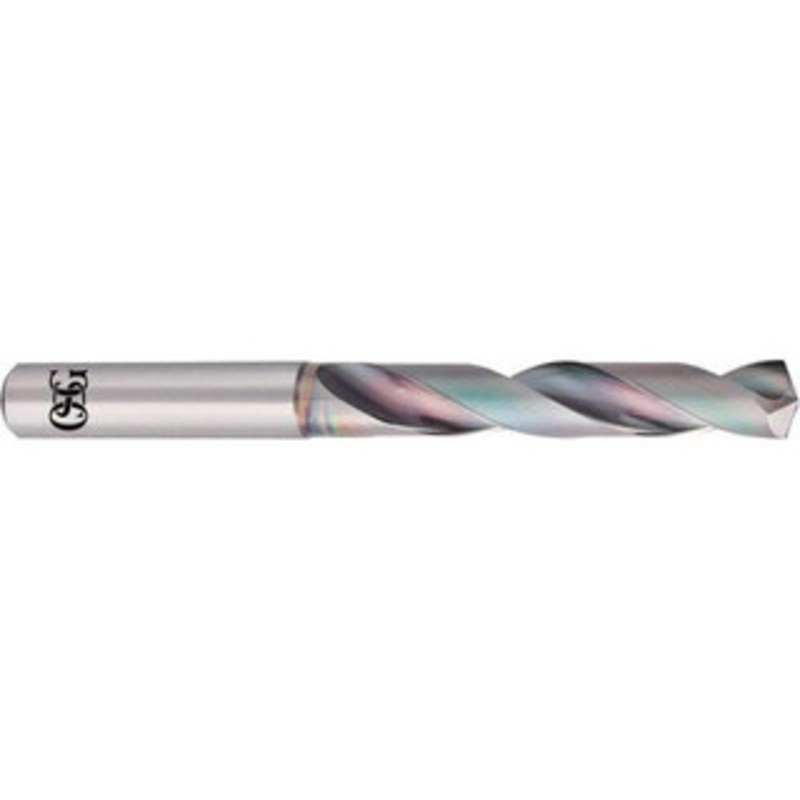

OSG 3.1mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OAL 8672310 – 48805816

OSG 3.1mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OAL 8672310 – 48805816

$46.68 $93.35
Review

OSG 3.1mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OALManufacturer Part #: 8672310S/N: 48805816UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (mm)3.10Drill

SKU: 4.8805816E7 Category:
Description Reviews (0)

OSG 3.1mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OAL

Manufacturer Part #: 8672310

S/N: 48805816

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 3.10 Drill Bit Size (Decimal Inch) 0.1220 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Coating/Finish EgiAs Flute Type Spiral Cutting Direction Right Hand Point Type X-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron Coolant Through No Number of Flutes 2 Primary Workpiece Material Code P, K, H Overall Length (mm) 74.00 Spiral Type Regular Flute Length (mm) 28.00 Series 6310 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 4.00 Drill Bit Diameter Tolerance +0 to -0.018 mm Web Thinning X-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.1000 – 0.1500 Drill Bit Size Range (mm) 3.00 – 4.00 UNSPSC Code 23241634
