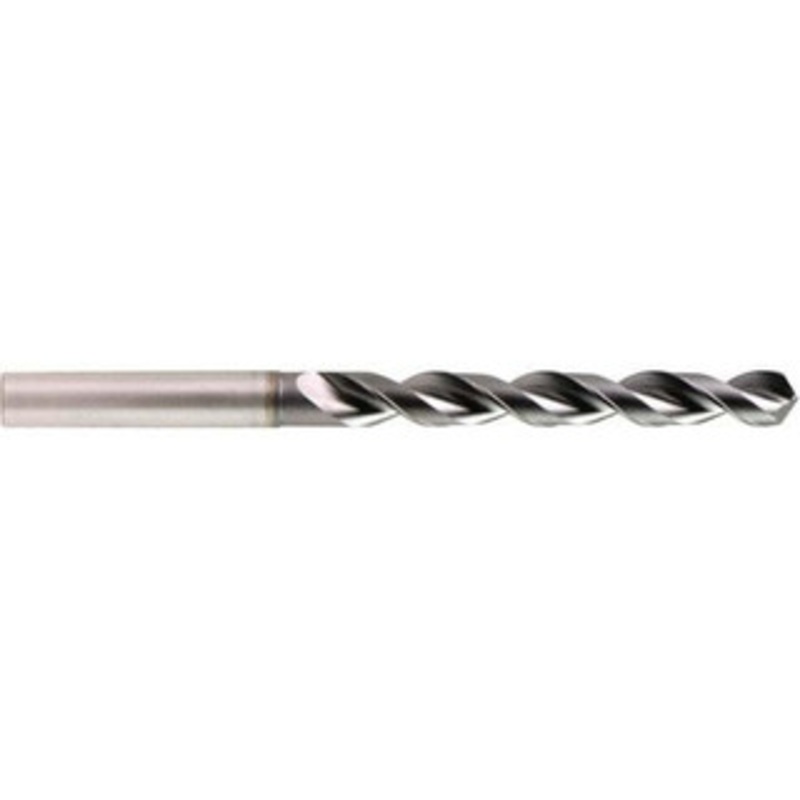

OSG 3.2mm 120 Powdered Metal Jobber Drill V Finish, Right Hand Cut, Spiral Flute, Straight Shank, 68mm OAL, Standard Point 8593032 – 77874998

OSG 3.2mm 120 Powdered Metal Jobber Drill V Finish, Right Hand Cut, Spiral Flute, Straight Shank, 68mm OAL, Standard Point 8593032 – 77874998

$23.26 $38.77
Review

OSG 3.2mm 120 Powdered Metal Jobber Drill V Finish, Right Hand Cut, Spiral Flute, Straight Shank, 68mm OAL, Standard PointManufacturer Part #: 8593032S/N: 77874998UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (

SKU: 7.7874998E7 Category:
Description Reviews (0)

OSG 3.2mm 120 Powdered Metal Jobber Drill V Finish, Right Hand Cut, Spiral Flute, Straight Shank, 68mm OAL, Standard Point

Manufacturer Part #: 8593032

S/N: 77874998

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 3.20 Drill Bit Size (Decimal Inch) 0.1260 Drill Bit Material Powdered Metal Drill Point Angle (Degrees) 120 Flute Type Spiral Cutting Direction Right Hand Point Type X-Thinned Primary Workpiece Material Alloy Steel, Cast Iron Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating V Primary Workpiece Material Code P, K, H Overall Length (mm) 68.00 Spiral Type Regular Flute Length (mm) 36.00 Series 2000 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Shank Diameter (mm) 4.00 Drill Bit Diameter Tolerance +0 to -0.018 mm Web Thinning X-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.1000 – 0.1500 Drill Bit Size Range (mm) 3.00 – 4.00 UNSPSC Code 23241634
