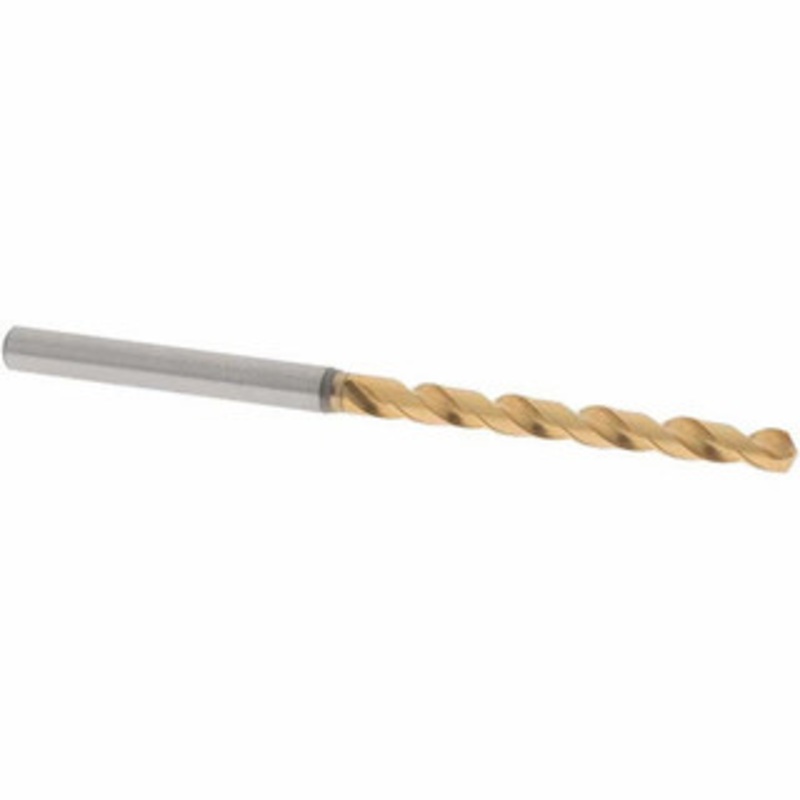

OSG 3.50012mm 130 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 71mm OAL, Standard Point 62535 – 75644864

OSG 3.50012mm 130 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 71mm OAL, Standard Point 62535 – 75644864

$17.00 $28.33
Review

OSG 3.50012mm 130 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 71mm OAL, Standard PointManufacturer Part #: 62535S/N: 75644864UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:D

SKU: 7.5644864E7 Category:
Description Reviews (0)

OSG 3.50012mm 130 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 71mm OAL, Standard Point

Manufacturer Part #: 62535

S/N: 75644864

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 3.50 Drill Bit Size (Decimal Inch) 0.1378 Drill Bit Material Vanadium High Speed Steel Drill Point Angle (Degrees) 130 Flute Type Spiral Cutting Direction Right Hand Point Type S-Thinned Primary Workpiece Material Steel, Stainless Steel, Aluminum, Aluminum Alloy, Aluminum Silicate Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Titanium Nitride Primary Workpiece Material Code P, M, N Overall Length (mm) 71.00 Spiral Type Regular Flute Length (mm) 39.00 Series 1600 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Shank Diameter (mm) 4.00 Drill Bit Diameter Tolerance +0 to -0.018 mm Web Thinning S-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.1000 – 0.1500 Drill Bit Size Range (mm) 3.00 – 4.00 UNSPSC Code 23241634
