OSG 4.09mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 95mm OAL 651016011 – 48803365

OSG 4.09mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 95mm OAL 651016011 – 48803365

$77.86 $155.72
Review

OSG 4.09mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 95mm OALManufacturer Part #: 651016011S/N: 48803365UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Wire)#20Dr

SKU: 4.8803365E7 Category:
Description Reviews (0)

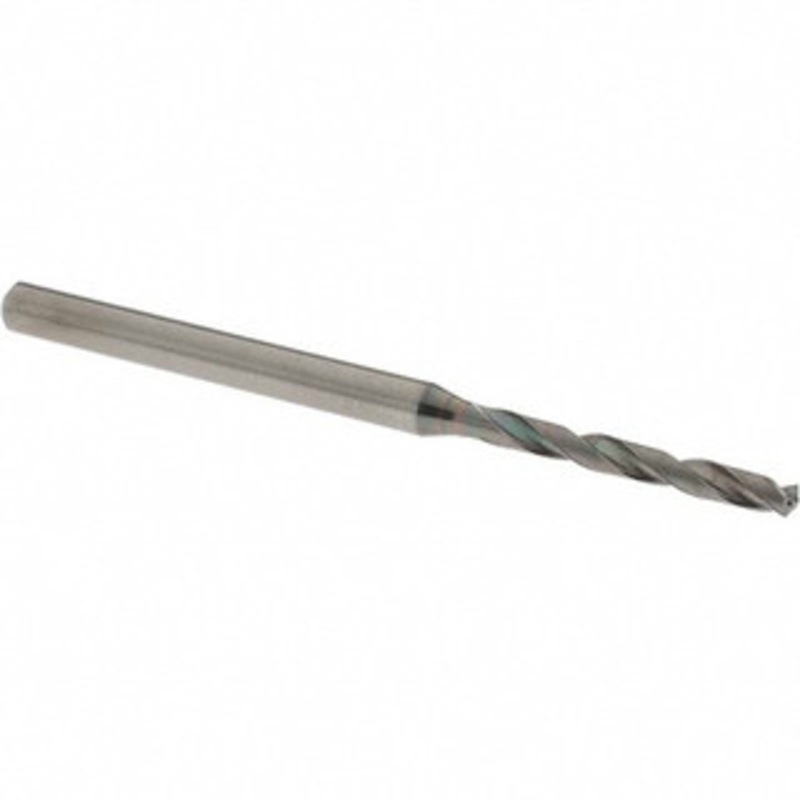

OSG 4.09mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 95mm OAL

Manufacturer Part #: 651016011

S/N: 48803365

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Wire) #20 Drill Bit Size (mm) 4.09 Drill Bit Size (Decimal Inch) 0.1610 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron, Titanium, Titanium Alloy Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating EgiAs Primary Workpiece Material Code P, K, S, H Overall Length (mm) 95.00 Spiral Type Regular Flute Length (mm) 37.00 Series 6510 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 6.00 Drill Bit Diameter Tolerance +0 to -0.018 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.1500 – 0.2000 Drill Bit Size Range (mm) 4.00 – 5.00 UNSPSC Code 23241634
