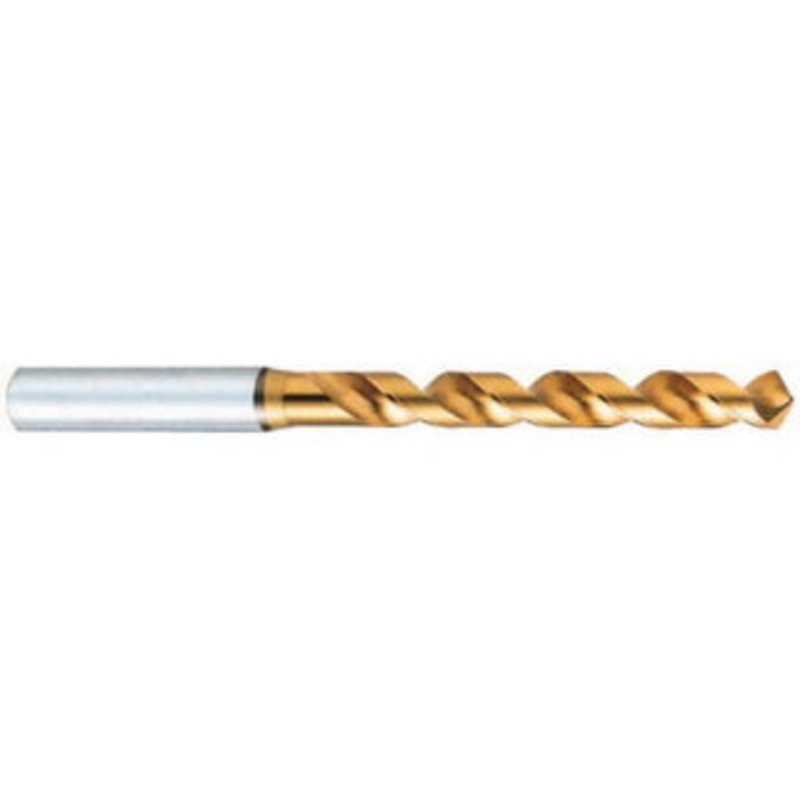

OSG 4.13mm 120 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 87mm OAL, Standard Point 8597413 – 00335836

OSG 4.13mm 120 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 87mm OAL, Standard Point 8597413 – 00335836

$27.32 $45.53
Review

OSG 4.13mm 120 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 87mm OAL, Standard PointManufacturer Part #: 8597413S/N: 00335836UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Dr

SKU: 335836.0 Category:
Description Reviews (0)

OSG 4.13mm 120 Vanadium High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 87mm OAL, Standard Point

Manufacturer Part #: 8597413

S/N: 00335836

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 4.13 Drill Bit Size (Decimal Inch) 0.1626 Drill Bit Material Vanadium High Speed Steel Drill Point Angle (Degrees) 120 Flute Type Spiral Cutting Direction Right Hand Point Type S-Thinned Primary Workpiece Material Steel, Stainless Steel, Aluminum, Aluminum Alloy, Aluminum Silicate Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Titanium Nitride Primary Workpiece Material Code P, M, N Overall Length (mm) 87.00 Spiral Type Regular Flute Length (mm) 43.00 Series 1600 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Shank Diameter (mm) 6.00 Drill Bit Diameter Tolerance +0 to -0.018 mm Web Thinning S-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.1500 – 0.2000 Drill Bit Size Range (mm) 4.00 – 5.00 UNSPSC Code 23241634
