OSG 5/16 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OAL 631031111 – 48803621

OSG 5/16 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OAL 631031111 – 48803621

$71.84 $143.67
Review

OSG 5/16" 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OALManufacturer Part #: 631031111S/N: 48803621UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)5/16Dr

SKU: 4.8803621E7 Category:
Description Reviews (0)

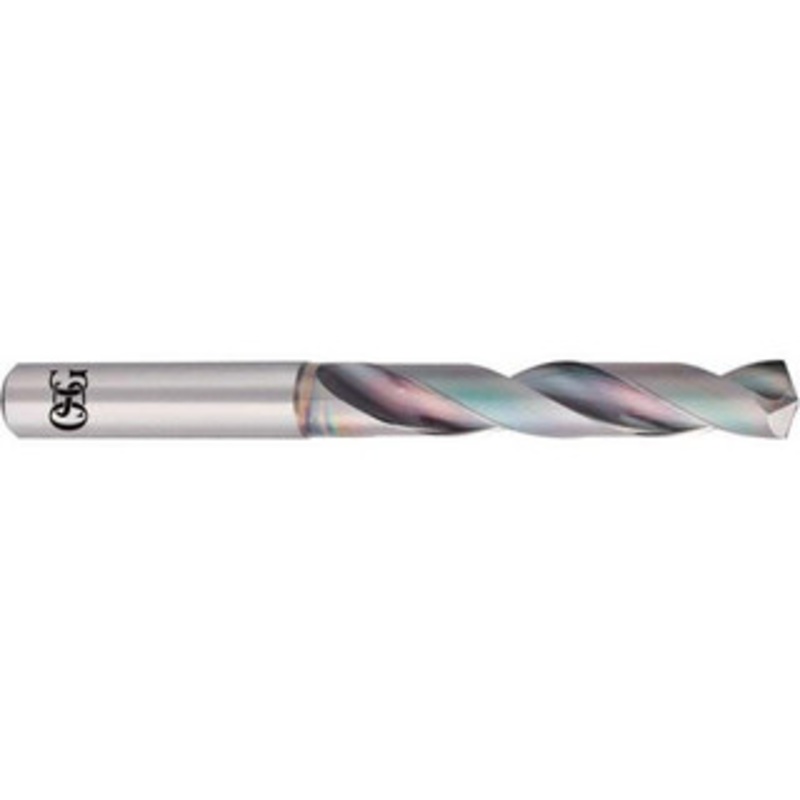

OSG 5/16″ 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OAL

Manufacturer Part #: 631031111

S/N: 48803621

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 5/16 Drill Bit Size (mm) 7.94 Drill Bit Size (Decimal Inch) 0.3126 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating EgiAs Primary Workpiece Material Code P, K, H Overall Length (mm) 91.00 Spiral Type Regular Flute Length (mm) 53.00 Series 6310 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (Inch) 5/16 Drill Bit Diameter Tolerance +0 to -0.022 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.3000 – 0.3500 UNSPSC Code 23241634
