Sale!

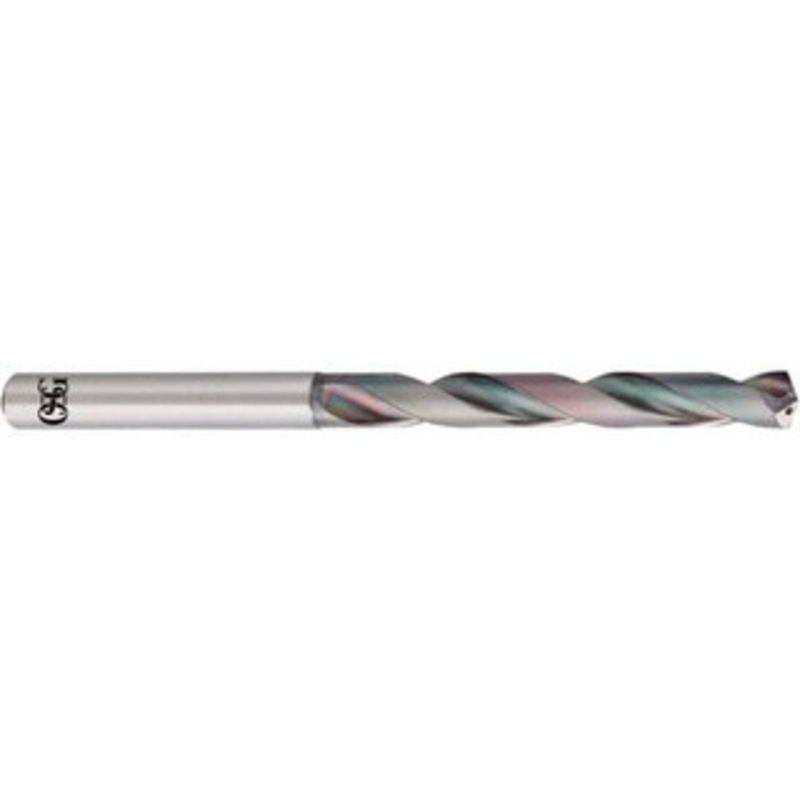

OSG 5.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 100mm OAL 8692530 – 48804199

OSG 5.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 100mm OAL 8692530 – 48804199

$84.31 $168.62
Review

OSG 5.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 100mm OALManufacturer Part #: 8692530S/N: 48804199UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (mm)5.30Drill

SKU: 4.8804199E7 Category:
Description Reviews (0)

OSG 5.3mm 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 100mm OAL

Manufacturer Part #: 8692530

S/N: 48804199

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 5.30 Drill Bit Size (Decimal Inch) 0.2087 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron, Titanium, Titanium Alloy Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating EgiAs Primary Workpiece Material Code P, K, S, H Overall Length (mm) 100.00 Spiral Type Regular Flute Length (mm) 43.00 Series 6510 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 6.00 Drill Bit Diameter Tolerance +0 to -0.018 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.2000 – 0.2500 Drill Bit Size Range (mm) 5.00 – 6.00 UNSPSC Code 23241634
