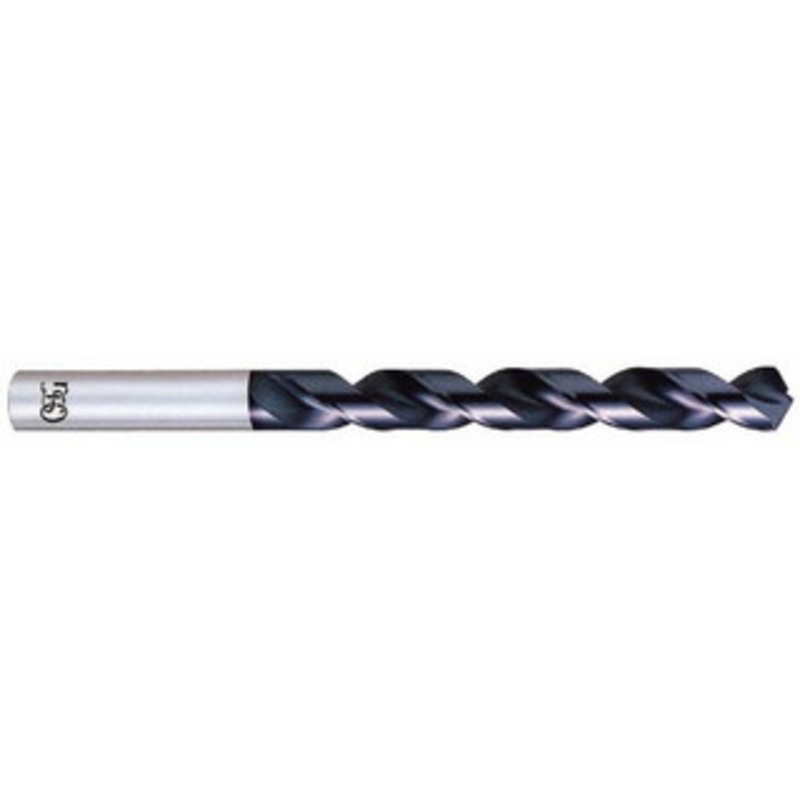

OSG 7.0993mm 120 Vanadium High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OAL, Standard Point 8594071 – 05410204

OSG 7.0993mm 120 Vanadium High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OAL, Standard Point 8594071 – 05410204

$27.45 $45.75
Review

OSG 7.0993mm 120 Vanadium High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OAL, Standard PointManufacturer Part #: 8594071S/N: 05410204UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specification

SKU: 5410204.0 Category:
Description Reviews (0)

OSG 7.0993mm 120 Vanadium High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 109mm OAL, Standard Point

Manufacturer Part #: 8594071

S/N: 05410204

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 7.10 Drill Bit Size (Decimal Inch) 0.2795 Drill Bit Material Vanadium High Speed Steel Drill Point Angle (Degrees) 120 Flute Type Spiral Cutting Direction Right Hand Point Type X-Thinned Primary Workpiece Material Steel, Alloy Steel, Stainless Steel, Cast Iron, Aluminum, Aluminum Alloy, Aluminum Silicate Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating TiCN Primary Workpiece Material Code P, M, K, N Overall Length (mm) 109.00 Spiral Type Regular Flute Length (mm) 69.00 Series 1800 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Shank Diameter (mm) 7.10 Drill Bit Diameter Tolerance +0 to -0.022 mm Web Thinning X-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000 Drill Bit Size Range (mm) 7.00 – 8.00 UNSPSC Code 23241634
