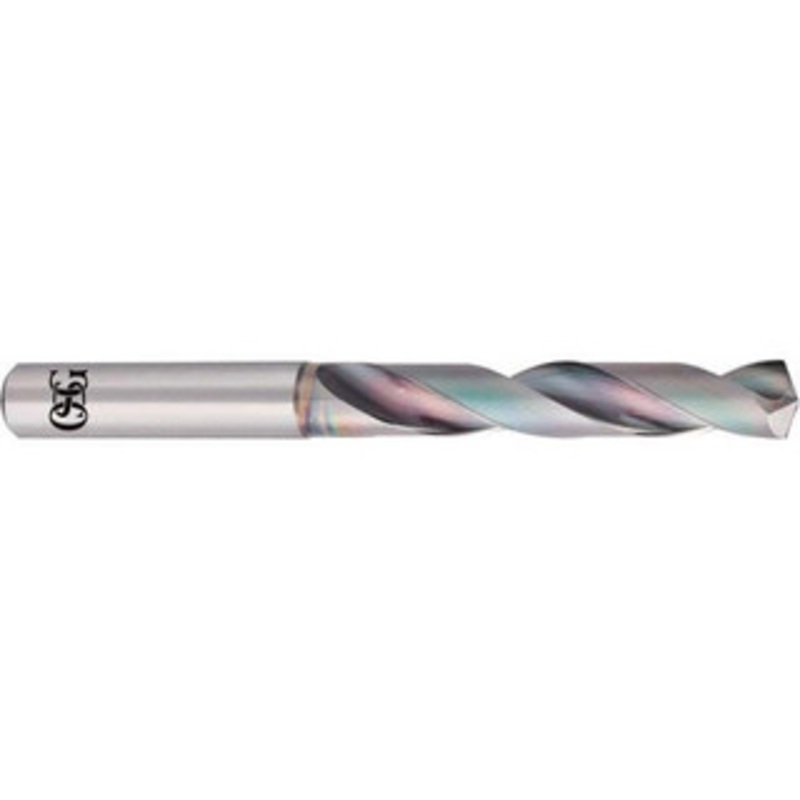

OSG Letter W 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 103mm OAL 8672980 – 48807150

OSG Letter W 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 103mm OAL 8672980 – 48807150

$97.12 $194.23
Review

OSG Letter W 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 103mm OALManufacturer Part #: 8672980S/N: 48807150UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Letter)WD

SKU: 4.880715E7 Category:
Description Reviews (0)

OSG Letter W 140 Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 103mm OAL

Manufacturer Part #: 8672980

S/N: 48807150

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Letter) W Drill Bit Size (mm) 9.80 Drill Bit Size (Decimal Inch) 0.3858 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type R-Thinned Primary Workpiece Material Steel, Alloy Steel, Cast Iron Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating EgiAs Primary Workpiece Material Code P, K, H Overall Length (mm) 103.00 Spiral Type Regular Flute Length (mm) 61.00 Series 6310 Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Flute By Diameter Ratio 5xD Shank Diameter (mm) 10.00 Drill Bit Diameter Tolerance +0 to -0.022 mm Web Thinning R-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Drill Bit Size Range (Decimal Inch) 0.3500 – 0.4000 Drill Bit Size Range (mm) 9.00 – 10.00 UNSPSC Code 23241634
