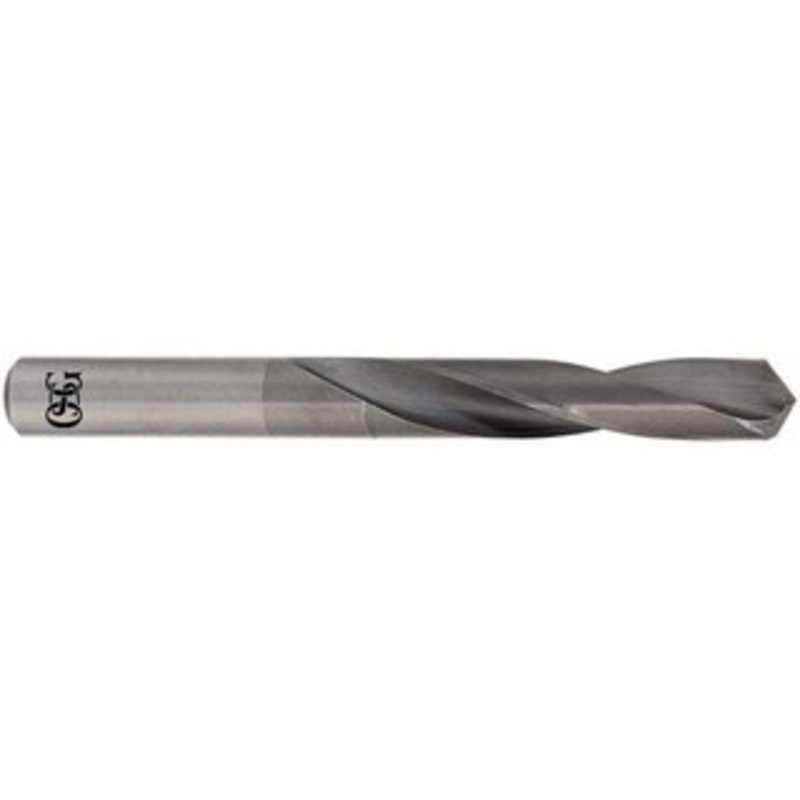

OSG Letter X 118 Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/2 OAL, Standard Point 220-3970 – 72095094

OSG Letter X 118 Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/2 OAL, Standard Point 220-3970 – 72095094

$56.47 $112.93
Review

OSG Letter X 118 Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/2" OAL, Standard PointManufacturer Part #: 220-3970S/N: 72095094UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill

SKU: 7.2095094E7 Category:
Description Reviews (0)

OSG Letter X 118 Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/2″ OAL, Standard Point

Manufacturer Part #: 220-3970

S/N: 72095094

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Letter) X Drill Bit Size (mm) 10.08 Drill Bit Size (Decimal Inch) 0.3970 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 118 Flute Type Spiral Cutting Direction Right Hand Point Type Web-Thinned Primary Workpiece Material Steel, Alloy Steel, Stainless Steel, Cast Iron, Aluminum, Aluminum Alloy, Aluminum Silicate Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Bright/Uncoated Flute Length (Inch) 2-7/8 Primary Workpiece Material Code P, M, K, N Overall Length (mm) 114.30 Overall Length (Inch) 4-1/2 Spiral Type Regular Flute Length (mm) 73.00 Series 220D Tool Application Blind Hole, Cross Hole, Drilling, Self-Centering Shank Diameter (mm) 10.08 Drill Bit Diameter Tolerance +0 to -0.013 mm Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance General Purpose Drill Bit Size Range (Decimal Inch) 0.3500 – 0.4000 UNSPSC Code 23241634
