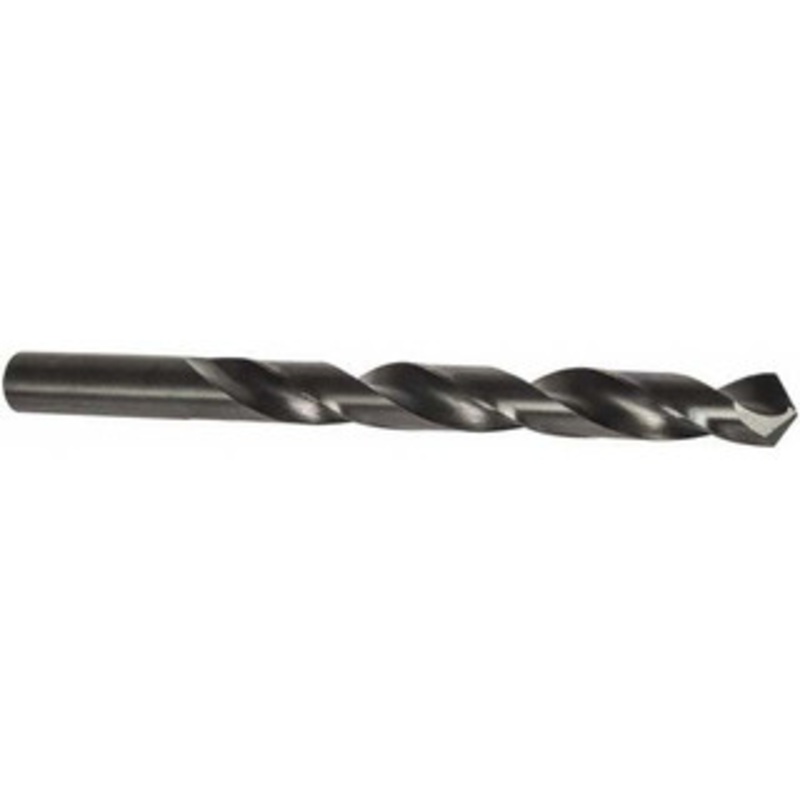

Precision Twist Drill 1/16 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-7/8 OAL, Split Point 010104 – 78502531

Precision Twist Drill 1/16 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-7/8 OAL, Split Point 010104 – 78502531

$2.13 $3.55
Review

Precision Twist Drill 1/16" 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-7/8" OAL, Split PointManufacturer Part #: 010104S/N: 78502531UNSPSC: 23241634UPC: 086071101044(Minimum Order Quantity=12, Package Qu

SKU: 7.8502531E7 Category:
Description Reviews (0)

Precision Twist Drill 1/16″ 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-7/8″ OAL, Split Point

Manufacturer Part #: 010104

S/N: 78502531

UNSPSC: 23241634

UPC: 086071101044

(Minimum Order Quantity=12, Package Quantity=1)

(Please order in multiples of 12)

Specifications:

Drill Bit Size (Inch) 1/16 Drill Bit Size (Decimal Inch) 0.0625 Drill Bit Material HSS Drill Point Angle (Degrees) 118 Coating/Finish Oxide Flute Type Regular Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel, Cast Iron Specification Number NAS 907 Coolant Through No Number of Flutes 2 Flute Length (Inch) 7/8 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.0625 Overall Length (mm) 47.63 Overall Length (Inch) 1-7/8 Overall Length (Decimal Inch) 1.8750 Spiral Type Regular Flute Length (mm) 22.23 Flute Length (Decimal Inch) 0.8750 Series R10A-R15A-R18A Proprietary Coating/Finish Steam Oxide Tool Application Drilling Flute By Diameter Ratio 14xD Shank Diameter (Inch) 1/16 Maximum Drilling Depth (Decimal Inch) 0.8750 Maximum Drilling Depth (Inch) 7/8 Shank Length (Decimal Inch) 1.0000 Shank Length (Inch) 1 Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade General Purpose Drill Bit Size Range (Decimal Inch) 0.0500 – 0.1000 Specification Designation NAS UNSPSC Code 23241634
