Sale!

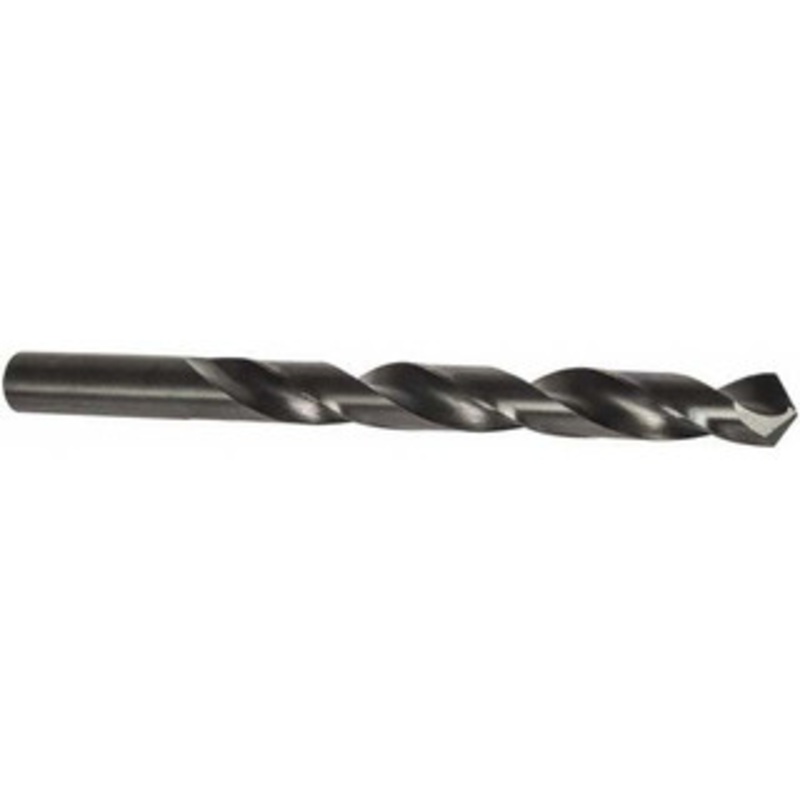

Precision Twist Drill 1/2 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 6 OAL, Split Point 010132 – 78502812

Precision Twist Drill 1/2 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 6 OAL, Split Point 010132 – 78502812

$16.06 $26.77
Review

Precision Twist Drill 1/2" 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 6" OAL, Split PointManufacturer Part #: 010132S/N: 78502812UNSPSC: 23241634UPC: 086071101327(Minimum Order Quantity=6, Package Quantity

SKU: 7.8502812E7 Category:
Description Reviews (0)

Precision Twist Drill 1/2″ 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 6″ OAL, Split Point

Manufacturer Part #: 010132

S/N: 78502812

UNSPSC: 23241634

UPC: 086071101327

(Minimum Order Quantity=6, Package Quantity=1)

(Please order in multiples of 6)

Specifications:

Drill Bit Size (Inch) 1/2 Drill Bit Size (Decimal Inch) 0.5000 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 118 Coating/Finish Steam Oxide Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material Specification Number NAS 907 Coolant Through No Number of Flutes 2 Flute Length (Inch) 4-1/2 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.5000 Overall Length (Inch) 6in Overall Length (Decimal Inch) 6.0000in Spiral Type Regular Flute Length (Decimal Inch) 4.5000 Series R10A-R15A-R18A Tool Application Drilling Flute By Diameter Ratio 9xD Shank Diameter (Inch) 1/2in Maximum Drilling Depth (Decimal Inch) 4.5000 Maximum Drilling Depth (Inch) 4-1/2 Shank Length (Decimal Inch) 1.5000in Shank Length (Inch) 1-1/2in Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Size Range (Decimal Inch) 0.5000 – 0.6500 Specification Designation NAS UNSPSC Code 23241634
