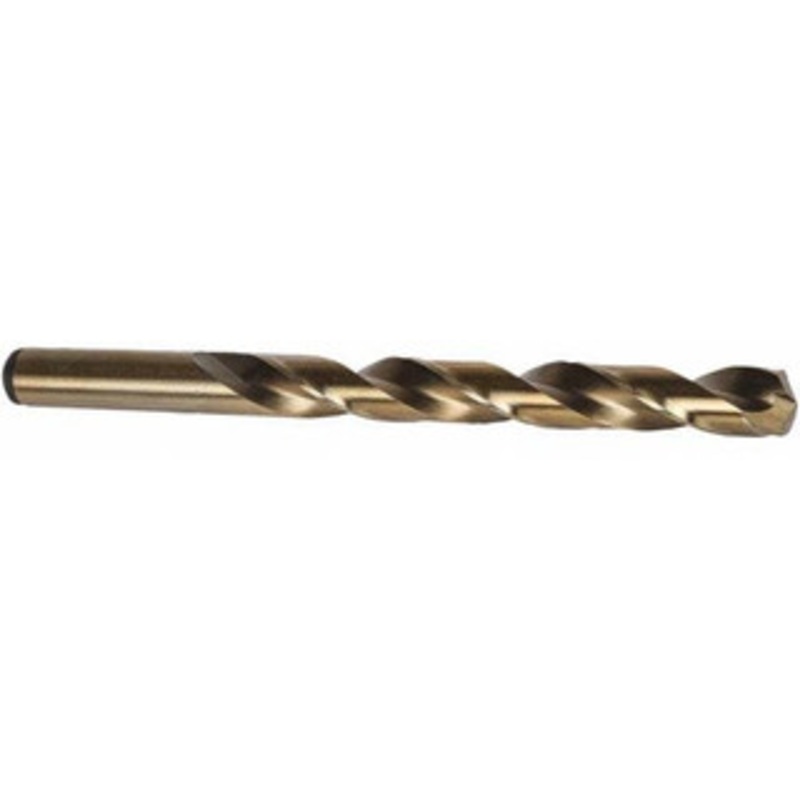

Precision Twist Drill 1.65mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/16 OAL, Split Point 016361 – 78512720

Precision Twist Drill 1.65mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/16 OAL, Split Point 016361 – 78512720

$3.54 $5.90
Review

Precision Twist Drill 1.65mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/16" OAL, Split PointManufacturer Part #: 016361S/N: 78512720UNSPSC: 23241634UPC: 086071163615(Minimum Order Quantity=12, Package Quan

SKU: 7.851272E7 Category:
Description Reviews (0)

Precision Twist Drill 1.65mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/16″ OAL, Split Point

Manufacturer Part #: 016361

S/N: 78512720

UNSPSC: 23241634

UPC: 086071163615

(Minimum Order Quantity=12, Package Quantity=1)

(Please order in multiples of 12)

Specifications:

Drill Bit Size (mm) 1.65 Drill Bit Size (Decimal Inch) 0.0650 Drill Bit Material Cobalt Drill Point Angle (Degrees) 135 Coating/Finish Straw Flute Type Regular Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel Specification Number DIN 338 Coolant Through No Number of Flutes 2 Flute Length (Inch) 25/32 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.0650 Overall Length (mm) 43.00 Overall Length (Inch) 1-11/16 Overall Length (Decimal Inch) 1.6875 Spiral Type Regular Flute Length (mm) 20.00 Flute Length (Decimal Inch) 0.7813 Series 2ACO Proprietary Coating/Finish Oxide Bronze Tool Application Drilling Flute By Diameter Ratio 12xD Shank Diameter (mm) 1.65 Maximum Drilling Depth (Decimal Inch) 0.7874 Shank Length (mm) 23 Shank Length (Decimal Inch) 0.9055 Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade Heavy Duty Drill Bit Size Range (Decimal Inch) 0.0500 – 0.1000 Drill Bit Size Range (mm) 0.00 – 2.00 Specification Designation DIN UNSPSC Code 23241634
