Precision Twist Drill 1/8 135 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-3/4 OAL, Split Point 015808 – 78510195

Precision Twist Drill 1/8 135 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-3/4 OAL, Split Point 015808 – 78510195

$4.02 $6.70
Review

Precision Twist Drill 1/8" 135 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-3/4" OAL, Split PointManufacturer Part #: 015808S/N: 78510195UNSPSC: 23241634UPC: 086071158086(Minimum Order Quantity=1, Package

SKU: 7.8510195E7 Category:
Description Reviews (0)

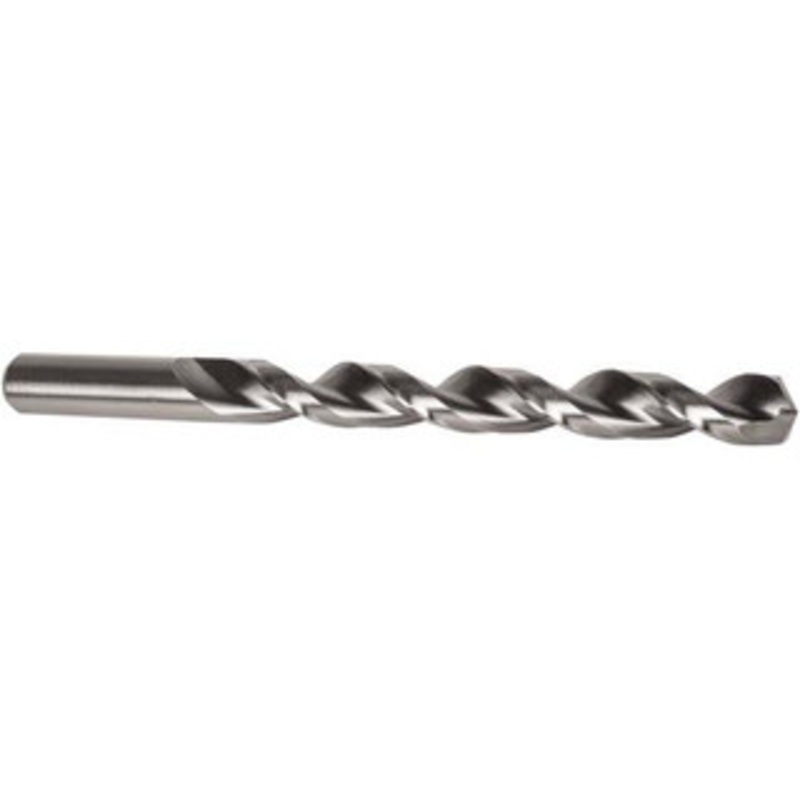

Precision Twist Drill 1/8″ 135 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-3/4″ OAL, Split Point

Manufacturer Part #: 015808

S/N: 78510195

UNSPSC: 23241634

UPC: 086071158086

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 1/8 Drill Bit Size (Decimal Inch) 0.1250 Drill Bit Material HSS Drill Point Angle (Degrees) 135 Coating/Finish Bright/Uncoated Flute Type Regular Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel, Aluminum & Non-Ferrous Coolant Through No Number of Flutes 2 Flute Length (Inch) 1-5/8 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.1250 Overall Length (mm) 69.85 Overall Length (Inch) 2-3/4 Overall Length (Decimal Inch) 2.7500 Spiral Type Regular Flute Length (mm) 41.28 Flute Length (Decimal Inch) 1.6250 Series QC21P Tool Application Drilling Flute By Diameter Ratio 13xD Shank Diameter (Inch) 1/8 Maximum Drilling Depth (Decimal Inch) 1.6250 Maximum Drilling Depth (Inch) 1-5/8 Shank Length (Decimal Inch) 1.1250 Shank Length (Inch) 1-1/8 Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade General Purpose Drill Bit Size Range (Decimal Inch) 0.1000 – 0.1500 Specification Designation ANSI UNSPSC Code 23241634
