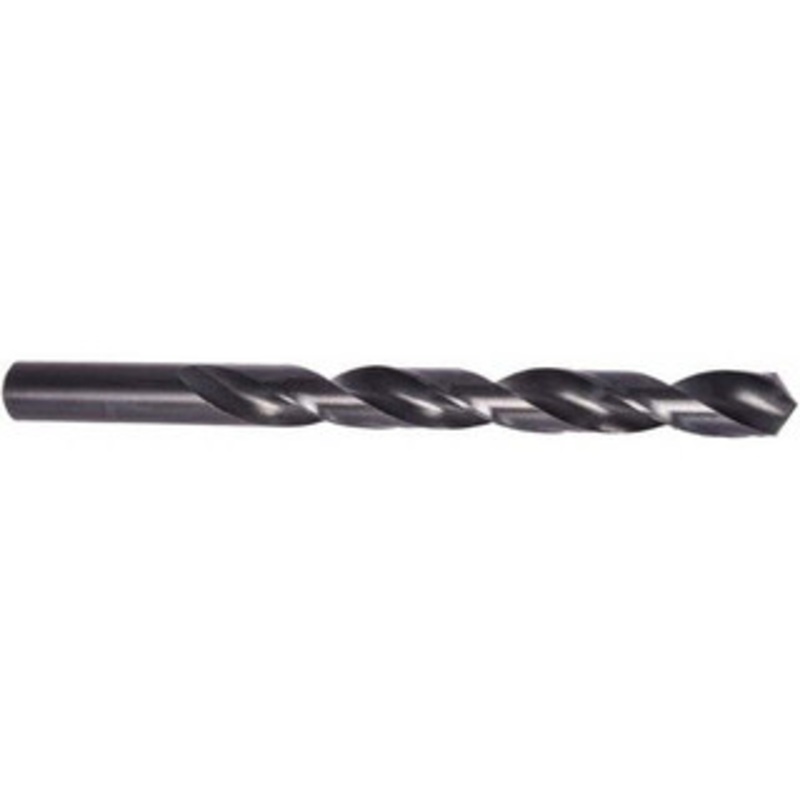

Precision Twist Drill 17/64 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/8 OAL, Standard Point 010017 – 78502259

Precision Twist Drill 17/64 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/8 OAL, Standard Point 010017 – 78502259

$4.66 $7.77
Review

Precision Twist Drill 17/64" 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/8" OAL, Standard PointManufacturer Part #: 010017S/N: 78502259UNSPSC: 23241634UPC: 086071100177(Minimum Order Quantity=1, Package

SKU: 7.8502259E7 Category:
Description Reviews (0)

Precision Twist Drill 17/64″ 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/8″ OAL, Standard Point

Manufacturer Part #: 010017

S/N: 78502259

UNSPSC: 23241634

UPC: 086071100177

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 17/64 Drill Bit Size (Decimal Inch) 0.2656 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 118 Coating/Finish Steam Oxide Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material Coolant Through No Number of Flutes 2 Flute Length (Inch) 2-7/8 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.2656 Overall Length (Inch) 4-1/8in Overall Length (Decimal Inch) 4.1250in Spiral Type Regular Flute Length (Decimal Inch) 2.8750 Series R10-R15-R18 Tool Application Drilling Flute By Diameter Ratio 11xD Shank Diameter (Inch) 17/64in Maximum Drilling Depth (Decimal Inch) 2.8750 Maximum Drilling Depth (Inch) 2-7/8 Shank Length (Decimal Inch) 1.2500in Shank Length (Inch) 1-1/4in Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade General Purpose Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000 Specification Designation ANSI UNSPSC Code 23241634
