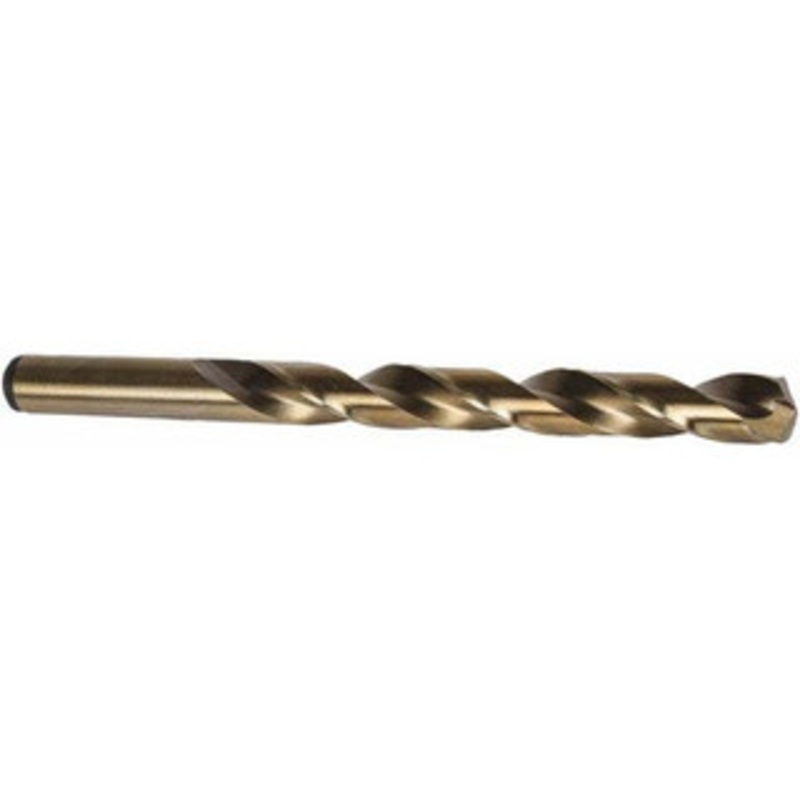

Precision Twist Drill 23/64 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-7/8 OAL, Split Point 010323 – 78503331

Precision Twist Drill 23/64 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-7/8 OAL, Split Point 010323 – 78503331

$15.69 $26.15
Review

Precision Twist Drill 23/64" 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-7/8" OAL, Split PointManufacturer Part #: 010323S/N: 78503331UNSPSC: 23241634UPC: 086071103239(Minimum Order Quantity=1, Package Quantit

SKU: 7.8503331E7 Category:
Description Reviews (0)

Precision Twist Drill 23/64″ 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-7/8″ OAL, Split Point

Manufacturer Part #: 010323

S/N: 78503331

UNSPSC: 23241634

UPC: 086071103239

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 23/64 Drill Bit Size (Decimal Inch) 0.3594 Drill Bit Material Cobalt Drill Point Angle (Degrees) 135 Coating/Finish Straw Flute Type Regular Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel Specification Number NAS 907 Coolant Through No Number of Flutes 2 Flute Length (Inch) 3-1/2 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.3594 Overall Length (mm) 123.83 Overall Length (Inch) 4-7/8 Overall Length (Decimal Inch) 4.8750 Spiral Type Regular Flute Length (mm) 88.90 Flute Length (Decimal Inch) 3.5000 Series R10CO-R15CO-R18CO Proprietary Coating/Finish Oxide Bronze Tool Application Drilling Flute By Diameter Ratio 10xD Shank Diameter (Inch) 23/64 Maximum Drilling Depth (Decimal Inch) 3.5000 Maximum Drilling Depth (Inch) 3-1/2 Shank Length (Decimal Inch) 1.3750 Shank Length (Inch) 1-3/8 Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade Heavy Duty Drill Bit Size Range (Decimal Inch) 0.3500 – 0.4000 Specification Designation NAS UNSPSC Code 23241634
