Precision Twist Drill 29/64 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-5/8 OAL, Standard Point 010529 – 78504149

Precision Twist Drill 29/64 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-5/8 OAL, Standard Point 010529 – 78504149

$18.86 $31.43
Review

Precision Twist Drill 29/64" 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-5/8" OAL, Standard PointManufacturer Part #: 010529S/N: 78504149UNSPSC: 23241634UPC: 086071105295(Minimum Order Quantity=1, Packag

SKU: 7.8504149E7 Category:
Description Reviews (0)

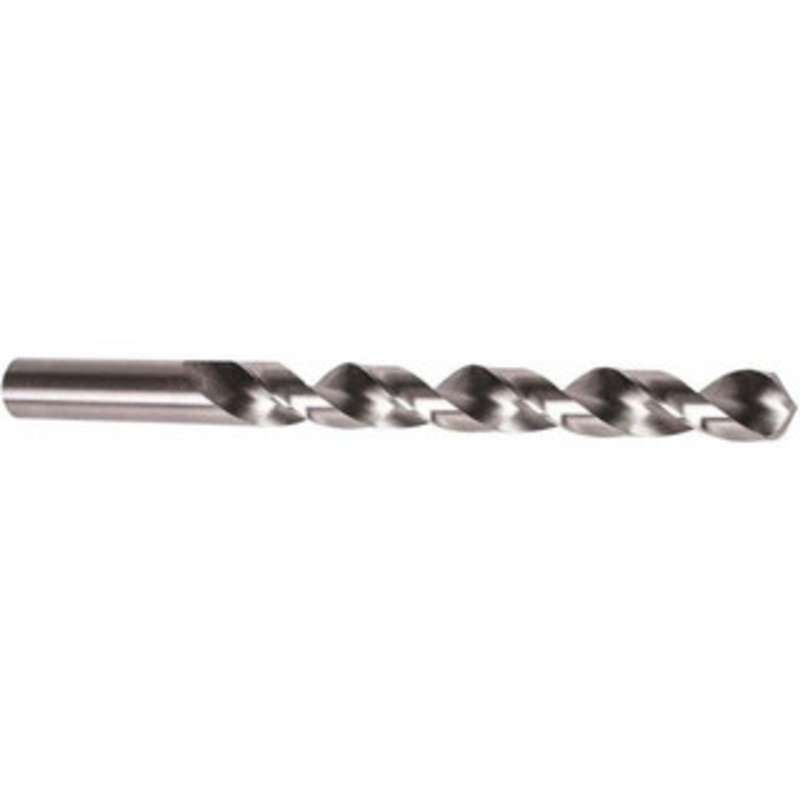

Precision Twist Drill 29/64″ 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-5/8″ OAL, Standard Point

Manufacturer Part #: 010529

S/N: 78504149

UNSPSC: 23241634

UPC: 086071105295

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 29/64 Drill Bit Size (Decimal Inch) 0.4531 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 118 Coating/Finish Bright/Uncoated Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium Coolant Through No Number of Flutes 2 Flute Length (Inch) 4-3/16 Primary Workpiece Material Code P, K, N, S Shank Diameter (Decimal Inch) 0.4531 Overall Length (Inch) 5-5/8in Overall Length (Decimal Inch) 5.6250in Spiral Type Regular Flute Length (Decimal Inch) 4.1875 Series R10H-R18H Tool Application Drilling Flute By Diameter Ratio 9xD Shank Diameter (Inch) 29/64in Maximum Drilling Depth (Decimal Inch) 4.1875 Maximum Drilling Depth (Inch) 4-3/16 Shank Length (Decimal Inch) 1.4375in Shank Length (Inch) 1-7/16in Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade General Purpose Drill Bit Size Range (Decimal Inch) 0.4000 – 0.5000 Specification Designation ANSI UNSPSC Code 23241634
