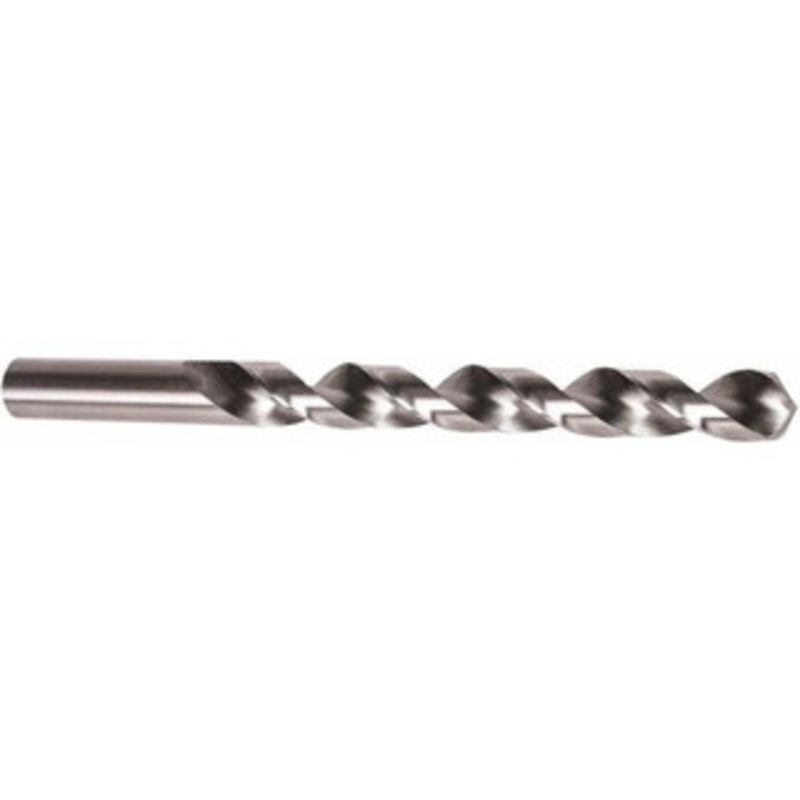

Precision Twist Drill 3/64 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-3/4 OAL, Standard Point 010503 – 78503885

Precision Twist Drill 3/64 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-3/4 OAL, Standard Point 010503 – 78503885

$2.78 $4.63
Review

Precision Twist Drill 3/64" 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-3/4" OAL, Standard PointManufacturer Part #: 010503S/N: 78503885UNSPSC: 23241634UPC: 086071105035(Minimum Order Quantity=12, Packag

SKU: 7.8503885E7 Category:
Description Reviews (0)

Precision Twist Drill 3/64″ 118 High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-3/4″ OAL, Standard Point

Manufacturer Part #: 010503

S/N: 78503885

UNSPSC: 23241634

UPC: 086071105035

(Minimum Order Quantity=12, Package Quantity=1)

(Please order in multiples of 12)

Specifications:

Drill Bit Size (Inch) 3/64 Drill Bit Size (Decimal Inch) 0.0469 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 118 Coating/Finish Bright/Uncoated Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium Coolant Through No Number of Flutes 2 Flute Length (Inch) 3/4 Primary Workpiece Material Code P, K, N, S Shank Diameter (Decimal Inch) 0.0469 Overall Length (Inch) 1-3/4in Overall Length (Decimal Inch) 1.7500in Spiral Type Regular Flute Length (Decimal Inch) 0.7500 Series R10H-R18H Tool Application Drilling Flute By Diameter Ratio 16xD Shank Diameter (Inch) 3/64in Maximum Drilling Depth (Decimal Inch) 0.7500 Maximum Drilling Depth (Inch) 3/4 Shank Length (Decimal Inch) 1.0000in Shank Length (Inch) 1in Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade General Purpose Drill Bit Size Range (Decimal Inch) 0.0000 – 0.0500 Specification Designation ANSI UNSPSC Code 23241634
