Sale!

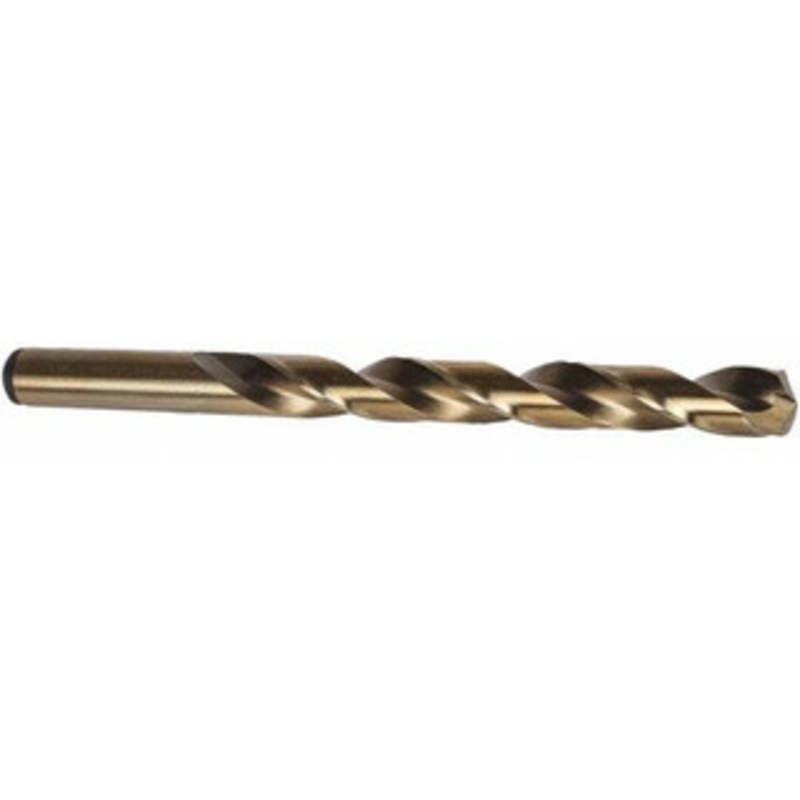

Precision Twist Drill 4.5mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-5/32 OAL, Split Point 016445 – 78513322

Precision Twist Drill 4.5mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-5/32 OAL, Split Point 016445 – 78513322

$5.09 $8.48
Review

Precision Twist Drill 4.5mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-5/32" OAL, Split PointManufacturer Part #: 016445S/N: 78513322UNSPSC: 23241634UPC: 086071164452(Minimum Order Quantity=1, Package Quantit

SKU: 7.8513322E7 Category:
Description Reviews (0)

Precision Twist Drill 4.5mm 135 Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-5/32″ OAL, Split Point

Manufacturer Part #: 016445

S/N: 78513322

UNSPSC: 23241634

UPC: 086071164452

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 4.50 Drill Bit Size (Decimal Inch) 0.1772 Drill Bit Material Cobalt Drill Point Angle (Degrees) 135 Coating/Finish Straw Flute Type Regular Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel Specification Number DIN 338 Coolant Through No Number of Flutes 2 Flute Length (Inch) 1-27/32 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.1772 Overall Length (mm) 80.00 Overall Length (Inch) 3-5/32 Overall Length (Decimal Inch) 3.1563 Spiral Type Regular Flute Length (mm) 47.00 Flute Length (Decimal Inch) 1.8438 Series 2ACO Proprietary Coating/Finish Oxide Bronze Tool Application Drilling Flute By Diameter Ratio 10xD Shank Diameter (mm) 4.5 Maximum Drilling Depth (Decimal Inch) 1.8504 Shank Length (mm) 33 Shank Length (Decimal Inch) 1.2992 Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade Heavy Duty Drill Bit Size Range (Decimal Inch) 0.1500 – 0.2000 Drill Bit Size Range (mm) 4.00 – 5.00 Specification Designation DIN UNSPSC Code 23241634
