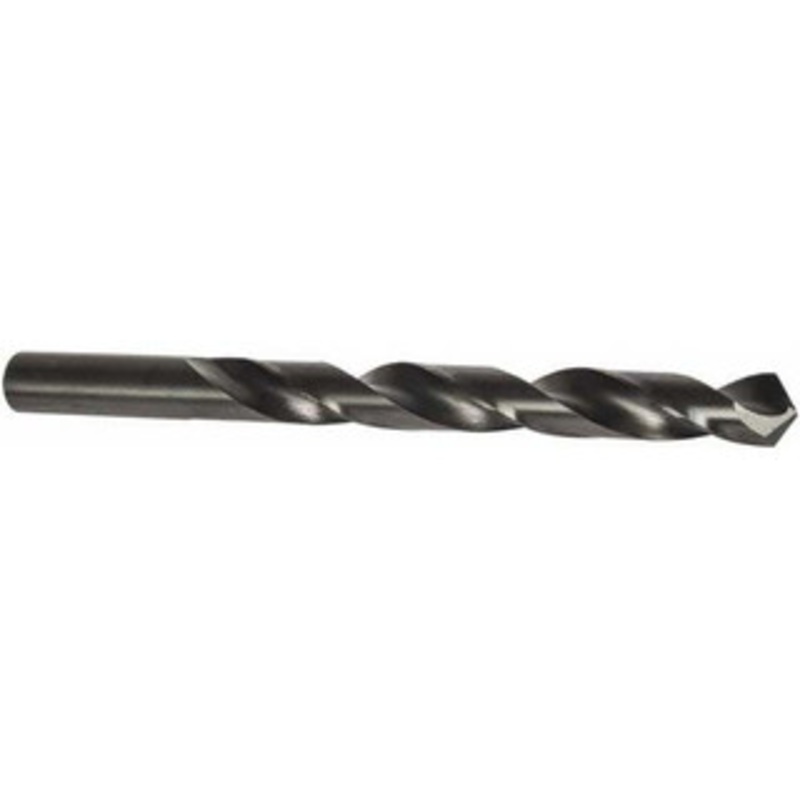

Precision Twist Drill 7/32 135 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4 OAL, Split Point 010214 – 78502929

Precision Twist Drill 7/32 135 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4 OAL, Split Point 010214 – 78502929

$3.86 $6.43
Review

Precision Twist Drill 7/32" 135 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4" OAL, Split PointManufacturer Part #: 010214S/N: 78502929UNSPSC: 23241634UPC: 086071021403(Minimum Order Quantity=1, Package Qua

SKU: 7.8502929E7 Category:
Description Reviews (0)

Precision Twist Drill 7/32″ 135 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4″ OAL, Split Point

Manufacturer Part #: 010214

S/N: 78502929

UNSPSC: 23241634

UPC: 086071021403

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 7/32 Drill Bit Size (Decimal Inch) 0.2188 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 135 Coating/Finish Steam Oxide Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material Specification Number NAS 907 Coolant Through No Number of Flutes 2 Flute Length (Inch) 2-1/2 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.2188 Overall Length (Inch) 3-3/4in Overall Length (Decimal Inch) 3.7500in Spiral Type Regular Flute Length (Decimal Inch) 2.5000 Series R10B-R15B-R18B Tool Application Drilling Flute By Diameter Ratio 11xD Shank Diameter (Inch) 7/32in Maximum Drilling Depth (Decimal Inch) 2.5000 Maximum Drilling Depth (Inch) 2-1/2 Shank Length (Decimal Inch) 1.2500in Shank Length (Inch) 1-1/4in Number of Flats 0 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance General Purpose Standards ANSI Double Margin No Drill Bit Grade Heavy Duty Drill Bit Size Range (Decimal Inch) 0.2000 – 0.2500 Specification Designation NAS UNSPSC Code 23241634
