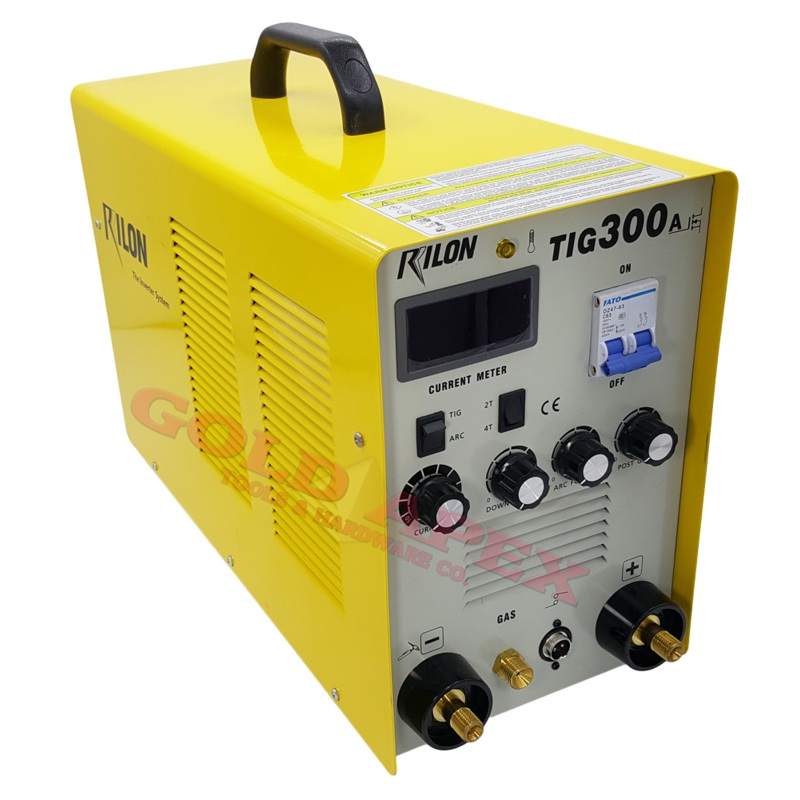

300 Amps

2in1 ARC and TIG

Specifications:

• Power Voltage (V): 1Phase 220V15%
• Frequency: 50/60 Hz
• Rated Maximum Supply Current: 52A (TIG) / 49A (MMA)
• Maximum Effective Supply Current: 28A (TIG) / 26A (MMA)
• Output Current Range (A): 10-300 (TIG) / 20-230 (MMA)
• Output Voltage Range (V): 10.4-22 (TIG) / 20.8-29.2 (MMA)
• Duty Cycle: 30%
• No-Load Voltage: 15V (TIG) / 60V (MMA)
• Arc Force Adjustment: 0-10A
• Power Factor: 0.82
• Efficiency: 70%
• Insulation Grade: F
• Housing Protection Grade: IP21

Inclusion:
TIG Torch Assembly
Ground Clamp
Electrode Holder
