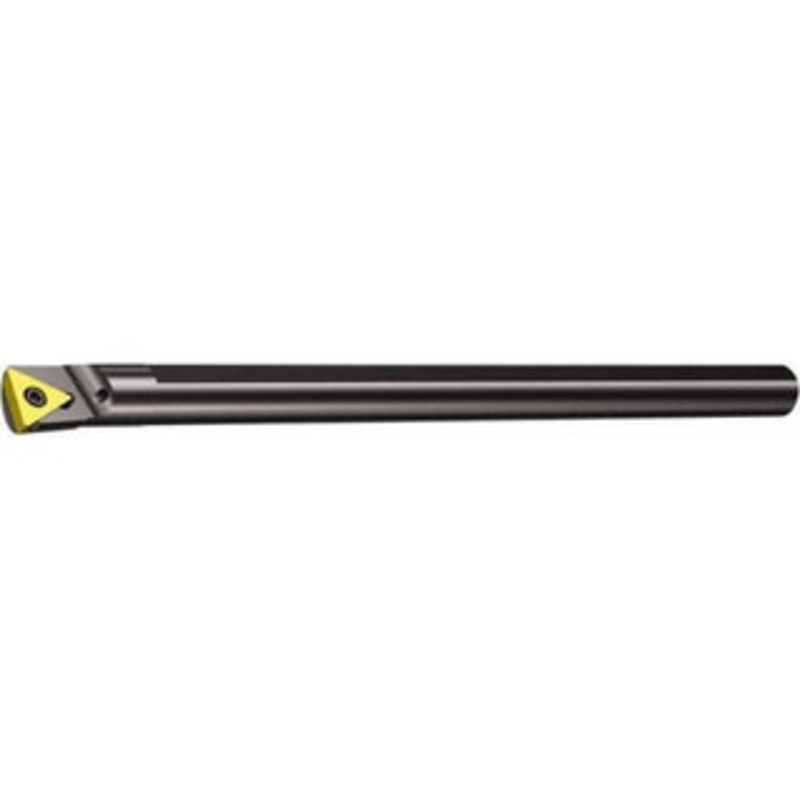

Sandvik Coromant 1/2 Min Bore, Right Hand E-STFC Indexable Boring Bar 6 OAL, 3/8 Shank Diam, 0 Lead Angle, Uses TCMT 1.81.51, E-STFC Inserts, Through Coolant 5734211 – 52085537

Sandvik Coromant 1/2 Min Bore, Right Hand E-STFC Indexable Boring Bar 6 OAL, 3/8 Shank Diam, 0 Lead Angle, Uses TCMT 1.81.51, E-STFC Inserts, Through Coolant 5734211 – 52085537

$150.00 $685.75
Review

Sandvik Coromant 1/2" Min Bore, Right Hand E-STFC Indexable Boring Bar 6" OAL, 3/8" Shank Diam, 0 Lead Angle, Uses TCMT 1.81.51, E-STFC Inserts, Through CoolantManufacturer Part #: 5734211S/N: 52085537UNSPSC: 23241601(Minimum Order Quantity=1, Package Quan

SKU: 5.2085537E7 Category:
Description Reviews (0)

Sandvik Coromant 1/2″ Min Bore, Right Hand E-STFC Indexable Boring Bar 6″ OAL, 3/8″ Shank Diam, 0 Lead Angle, Uses TCMT 1.81.51, E-STFC Inserts, Through Coolant

Manufacturer Part #: 5734211

S/N: 52085537

UNSPSC: 23241601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Minimum Bore Diameter (mm) 12.70 Minimum Bore Diameter (Decimal Inch) 0.5000 Minimum Bore Diameter (Inch) 1/2 Toolholder Style E-STFC Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) 0.5000 Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) 0.5000 Tool Material Solid Carbide Insert Compatibility TCMT 1.81.51 Shank Diameter (mm) 9.53 Hand of Holder Right Hand Shank Diameter (Inch) 3/8 Overall Length (Decimal Inch) 6.0000 Overall Length (mm) 152.40 Overall Length (Inch) 6 Insert Holding Method Screw Clamping Rake Neutral Rake Angle 0.00 Lead Angle 0.00 Series CoroTurn 107 Insert Inscribed Circle (Decimal Inch) 0.2250 Insert Inscribed Circle (mm) 5.71 Multi-use Tool Yes Back of Bar to Cutting Edge (Decimal Inch) 6.0000 Back of Bar to Cutting Edge (mm) 152.40 Center to Cutting Edge (Decimal Inch) 0.2640 Center to Cutting Edge (mm) 6.71 Multi-Use Application Boring, Turning Number of Inserts Used on Toolholder 1 Neck Diameter (Decimal Inch) 0.3750 UNSPSC Code 23241601 Neck Diameter (Inch) 3/8 Insert Thickness (Decimal Inch) 0.0938 Insert Thickness (Inch) 3/32 Manufacturers Catalog Number E06M-STFCR 1.8 Coolant Through Yes
