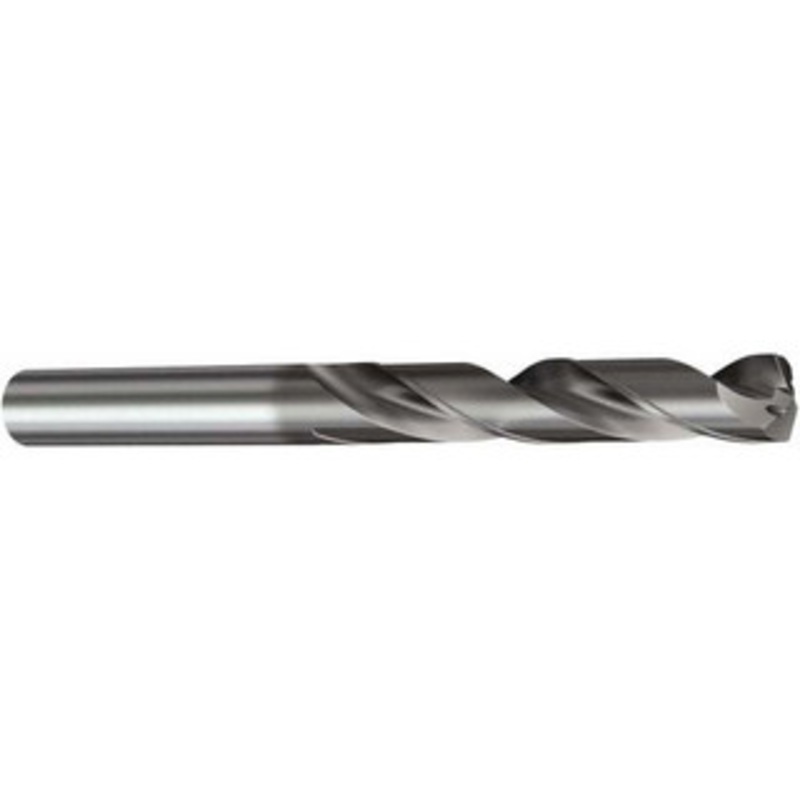

Sandvik Coromant 11.11mm 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 118mm OAL, Standard Point
Manufacturer Part #: 6241007
S/N: 54731674
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) |
7/16 |
| Drill Bit Size (mm) |
11.11 |
| Drill Bit Size (Decimal Inch) |
0.4374 |
| Drill Bit Material |
Solid Carbide |
| Drill Point Angle (Degrees) |
140 |
| Coating/Finish |
TiAlN |
| Flute Type |
Spiral |
| Cutting Direction |
Right Hand |
| Point Type |
Standard |
| Primary Workpiece Material |
Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Specification Number |
DIN 6535HA |
| Coolant Through |
Yes |
| Number of Flutes |
2 |
| Primary Workpiece Material Code |
P, M, K, N, S, H |
| Shank Diameter (Decimal Inch) |
0.4724 |
| Overall Length (mm) |
118.00 |
| Overall Length (Decimal Inch) |
4.6457 |
| Spiral Type |
Regular |
| Flute Length (mm) |
71.00 |
| Flute Length (Decimal Inch) |
2.7953 |
| Series |
460 |
| Tool Application |
Drilling |
| Flute By Diameter Ratio |
6xD |
| Shank Diameter (mm) |
12.00 |
| Maximum Drilling Depth (Decimal Inch) |
2.7953 |
| Maximum Drilling Depth (mm) |
57.20 |
| Shank Length (mm) |
45.00 |
| Shank Length (Decimal Inch) |
1.8504in |
| Number of Flats |
0 |
| Drill Point Length (mm) |
1.70 |
| Drill Point Length (Decimal Inch) |
0.0669 |
| Shank Type |
Straight-Cylindrical |
| Tool Performance |
High Performance |
| Double Margin |
No |
| Drill Bit Grade |
High Performance |
| Drill Bit Size Range (Decimal Inch) |
0.4000 – 0.5000 |
| Drill Bit Size Range (mm) |
10.00 – 12.50 |
| Material Grade |
GC34 |
| Specification Designation |
DIN |
| UNSPSC Code |
23241634 |
