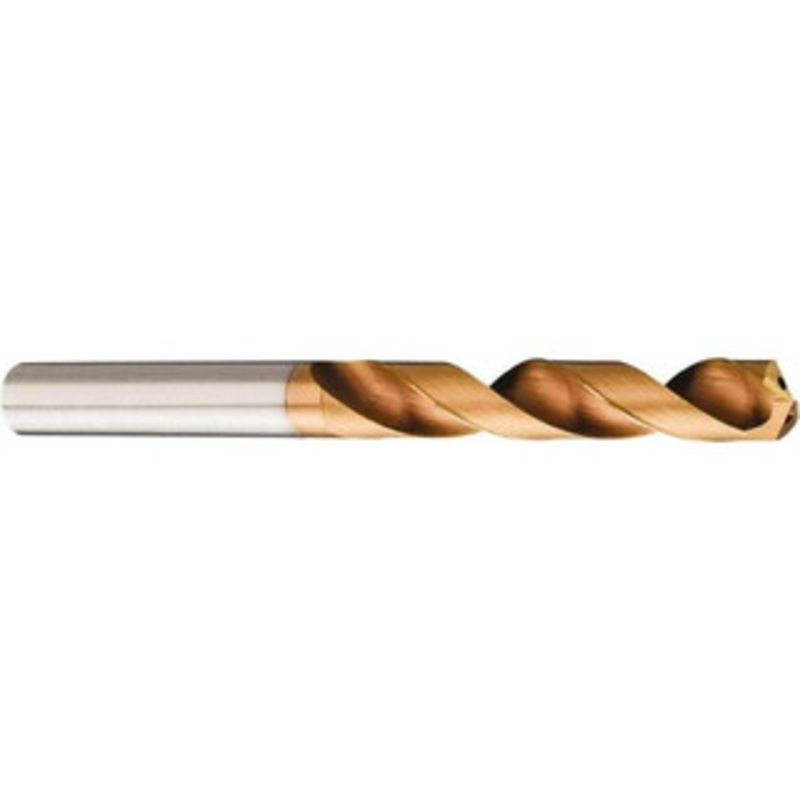

Sandvik Coromant 3.1mm 140 Point Solid Carbide Jobber Drill Multilayer TiAlN Finish, Spiral Flute, Straight Shank, Right Hand Cut, 1.1024 Flute Length, 2.5984 OAL 5746811 – 54909809

Sandvik Coromant 3.1mm 140 Point Solid Carbide Jobber Drill Multilayer TiAlN Finish, Spiral Flute, Straight Shank, Right Hand Cut, 1.1024 Flute Length, 2.5984 OAL 5746811 – 54909809

$141.67 $283.33
Review

Sandvik Coromant 3.1mm 140 Point Solid Carbide Jobber Drill Multilayer TiAlN Finish, Spiral Flute, Straight Shank, Right Hand Cut, 1.1024" Flute Length, 2.5984" OALManufacturer Part #: 5746811S/N: 54909809UNSPSC: 23241634(Minimum Order Quantity=1, Package

SKU: 5.4909809E7 Category:
Description Reviews (0)

Sandvik Coromant 3.1mm 140 Point Solid Carbide Jobber Drill Multilayer TiAlN Finish, Spiral Flute, Straight Shank, Right Hand Cut, 1.1024″ Flute Length, 2.5984″ OAL

Manufacturer Part #: 5746811

S/N: 54909809

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 3.10 Drill Bit Size (Decimal Inch) 0.1220 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Coating/Finish TiAlN Flute Type Regular Spiral Cutting Direction Right Hand Point Type Self Centering Primary Workpiece Material Steel, Cast Iron, Hardened Materials Specification Number DIN 6535HA Coolant Through Yes Number of Flutes 2 Primary Workpiece Material Code P, M, K, N, S Shank Diameter (Decimal Inch) 0.2362 Overall Length (mm) 66.00 Overall Length (Decimal Inch) 2.5984 Spiral Type Regular Flute Length (mm) 28.00 Flute Length (Decimal Inch) 1.1024 Series R840 Tool Application Drilling Flute By Diameter Ratio 5xD Shank Diameter (mm) 6 Maximum Drilling Depth (Decimal Inch) 1.1024 Maximum Drilling Depth (mm) 20.00 Shank Length (Decimal Inch) 1.4960 Number of Flats 0 Drill Point Length (mm) 0.50 Drill Point Length (Decimal Inch) 0.0197 Drill Bit Diameter Tolerance m7 Shank Type Straight Tool Performance High Performance Double Margin No Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.1000 – 0.1500 Drill Bit Size Range (mm) 3.00 – 4.00 Material Grade Micrograin Specification Designation DIN UNSPSC Code 23241634
