Sale!
Sandvik Coromant 9.6mm 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5.4724 OAL 6423033 – 49367683

Sandvik Coromant 9.6mm 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5.4724 OAL 6423033 – 49367683

$146.00 $579.58
Review

Sandvik Coromant 9.6mm 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5.4724" OALManufacturer Part #: 6423033S/N: 49367683UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Siz

SKU: 4.9367683E7 Category:
Description Reviews (0)

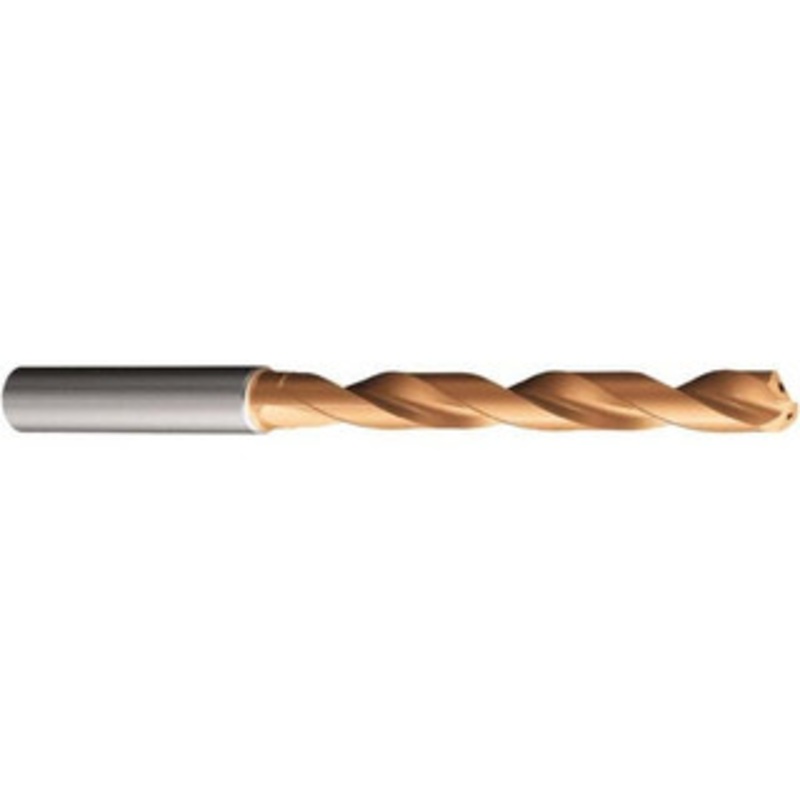

Sandvik Coromant 9.6mm 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5.4724″ OAL

Manufacturer Part #: 6423033

S/N: 49367683

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 9.60 Drill Bit Size (Decimal Inch) 0.3780 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Coating/Finish TiAlN Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Steel Specification Number DIN 6535HA Coolant Through Yes Number of Flutes 2 Primary Workpiece Material Code P Shank Diameter (Decimal Inch) 0.3937 Overall Length (Decimal Inch) 5.4724 Spiral Type Regular Flute Length (Decimal Inch) 3.7795 Series 860-PM Tool Application Drilling Flute By Diameter Ratio 10xD Shank Diameter (mm) 10.00 Maximum Drilling Depth (Decimal Inch) 3.7795 Shank Length (Decimal Inch) 1.6929in Number of Flats 0 Drill Point Length (mm) 1.60 Drill Point Length (Decimal Inch) 0.0630 Shank Type Straight-Cylindrical Tool Performance High Performance Double Margin No Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.3500 – 0.4000 Drill Bit Size Range (mm) 9.00 – 10.00 Material Grade 2214 Specification Designation DIN UNSPSC Code 23241634
