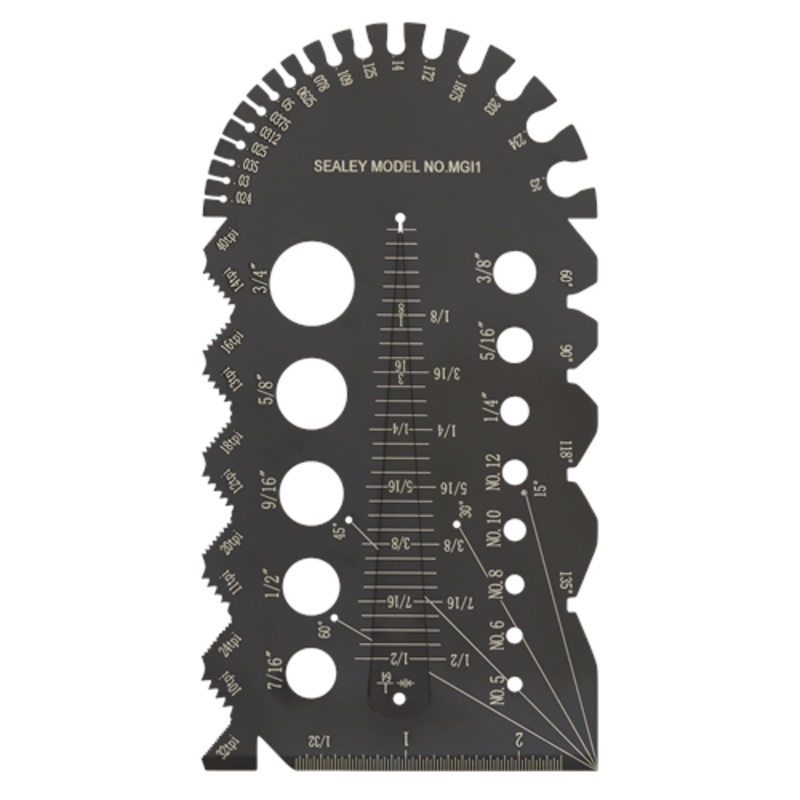

Stainless steel Imperial multifunction thread/pitch identification gauge.
Pitches: 10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi).
Bolt Screw Diameters: No.5, No.6, No.8, No.10, No.12, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 3/4″.
Wire Gauge: 0.024″, 0.03″, 0.035″, 0.025″, 0.0312″, 0.0375″, 0.05″, 0.0625″, 0.078″, 0.109″, 0.125″, 0.14″, 0.172″, 0.1875″, 0.203″, 0.234″, 0.25″.
Square: 15, 30, 45, 60, 90.
Drill Point Angle: 60, 90, 118, 135.
Bolt screw length: 0-2-3/8″
Tap/Drill Recommendation: #2-3/4″
Check the thickness of washers and diameter of electric wire.

Stainless steel multifunction thread/pitch identification gauge. Easily identify the size of bolt, drill bit or tap that is required. Check the thickness of washers and diameter of electric wire. Use as a set square and ruler.

Stainless steel imperial multifunction thread/pitch identification gauge.
Pitches: 10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi).
Bolt Screw Diameters: No.5, No.6, No.8, No.10, No.12, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 3/4″.
Wire Gauge: 0.024″, 0.03″, 0.035″, 0.025″, 0.0312″, 0.0375″, 0.05″, 0.0625″, 0.078″, 0.109″, 0.125″, 0.14″, 0.172″, 0.1875″, 0.203″, 0.234″, 0.25″.
Square: 15, 30, 45, 60, 90.
Drill Point Angle: 60, 90, 118, 135.
Bolt screw length: 0-2-3/8″.
Tap/Drill Recommendation: #2-3/4″.
Checks the thickness of washers and diameter of electric wire.
Model No. MGI1

Technical Specification:

Nett Weight: 137.5g
Bolt Screw Diameters: No.5, No.6, No.8, No.10, No.12, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4
Bolt Screw Length: 0-2-3/8″
Drill Point Angle: 60, 90, 118, 135
Pitches: 10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi)
Square: 15-30-45-60-90
Tap/Drill Recommendation: #2-3/4″
Wire Gauge: 0.024″, 0.03″, 0.035″, 0.025″, 0.0312″, 0.0375″, 0.05″, 0.0625″, 0.078″, 0.109″, 0.125″, 0.14″, 0.172″, 0.1875″, 0.203″, 0.234″, 0.25″

Dimensions: Length: 20mm x Height: 248mm
Weight: 0.175Kg
Warranty: 1 year
