Seco Tools 0.44 Max Depth, Right Hand Indexable Grooving Toolholder 12 OAL, Uses LC..1604.. Inserts, A..-CGGR Toolholder, Through Coolant, Series Multi-Directional Turning (MDT) 00003296 – 00920439

Seco Tools 0.44 Max Depth, Right Hand Indexable Grooving Toolholder 12 OAL, Uses LC..1604.. Inserts, A..-CGGR Toolholder, Through Coolant, Series Multi-Directional Turning (MDT) 00003296 – 00920439

$148.00 $869.25
Review

Seco Tools 0.44" Max Depth, Right Hand Indexable Grooving Toolholder 12" OAL, Uses LC..1604.. Inserts, A..-CGGR Toolholder, Through Coolant, Series Multi-Directional Turning (MDT)Manufacturer Part #: 00003296S/N: 00920439UNSPSC: 23153308(Minimum Order Quan

SKU: 920439.0 Category:
Description Reviews (0)

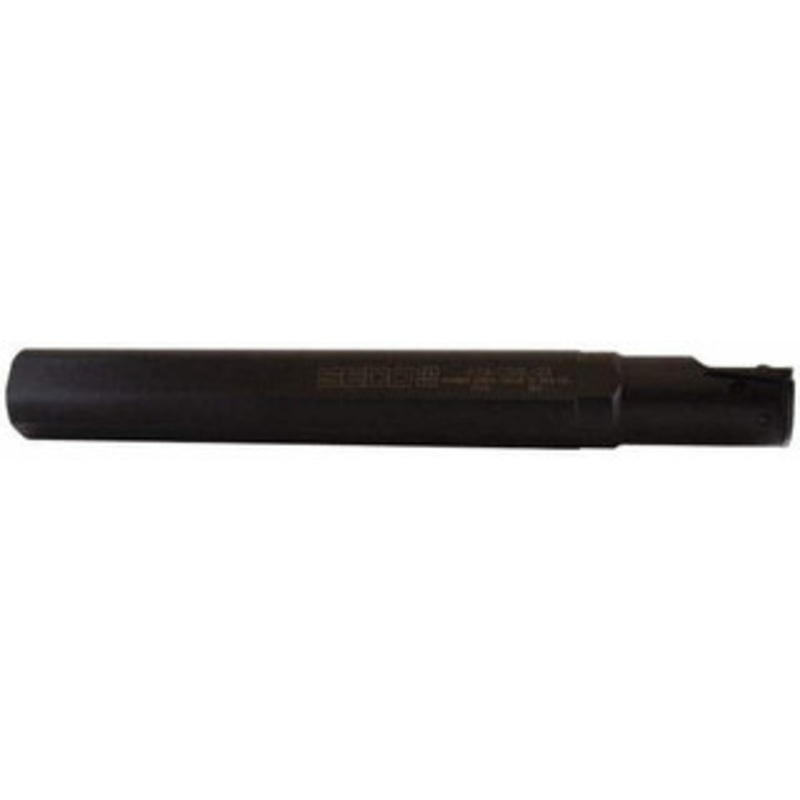

Seco Tools 0.44″ Max Depth, Right Hand Indexable Grooving Toolholder 12″ OAL, Uses LC..1604.. Inserts, A..-CGGR Toolholder, Through Coolant, Series Multi-Directional Turning (MDT)

Manufacturer Part #: 00003296

S/N: 00920439

UNSPSC: 23153308

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Toolholder Type Non-Face Grooving Hand of Holder Right Hand Cutting Direction Right Hand Maximum Depth of Cut (Decimal Inch) 0.4400 Minimum Groove Width (Decimal Inch) 0.1570 Toolholder Style A..-CGGR Maximum Groove Width (Decimal Inch) 0.1570 Insert Holding Method Clamp Insert Compatibility LC..1604.. Compatible Insert Size Code LC1604 Shank Width/Diameter (Decimal Inch) 1.4290 Shank Width/Diameter (Inch) 1-1/2 Shank Width/Diameter (mm) 36.30 Shank Height (mm) 35.10 Shank Height (Decimal Inch) 1.3820 Series Multi-Directional Turning (MDT) Shank Length (mm) 244.80 Shank Length (Decimal Inch) 9.6380 Overall Length (Inch) 12 Overall Length (Decimal Inch) 12.0000 Multi-use Tool Yes Center to Cutting Edge (Decimal Inch) 1.1250 Minimum Hole Diameter (mm) 45.72 Minimum Hole Diameter (Decimal Inch) 1.8000 Head Height (Decimal Inch) 2.3600 Head Length (Decimal Inch) 2.3620 Head Length (mm) 60.00 Primary Workpiece Material Stainless Steel Primary Workpiece Material Code M Toolholder Material Steel Complete Insert Compatibility LC.. 1604.., LCGN, LCMF, LCMR Minimum Bore Diameter (Decimal Inch) 1.8000 MSC/Manufacturer Number A24-CGGR/L 04 Coolant Through Yes
